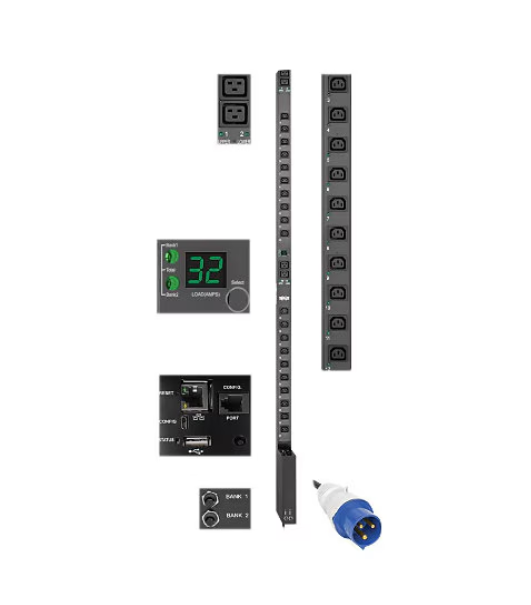

Eaton 7.7kW Single-Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. (3.05 m) Cord,


Quick tech specs

  • Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. (3.05 m) Cord, 0U, TAA
  • 32 A
  • 7.4 kW
  • Ethernet 10/100, USB
  • output connectors: 24 (20 x IEC 60320 C13, 4 x IEC 60320 C19)
  • 10 ft cord
  • TAA Compliant
  • Power distribution unit (rack-mountable)
  • AC 230 V
  • 1-phase
  • input: IEC 60309 32A
  • 0U
  • GSA Trade Compliant

AED8,099.00

Know your gear

0U PDU Distributes, Monitors and Manages Network-Grade AC Power
Recommended for data centers, server rooms and network closets, this 0U vertical PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. You can more efficiently manage network power consumption and properly balance loads without having to visit the site. Reducing the number of on-site visits can help lower the cost of data center maintenance.
24 Outlets Dispense Clean Power
During normal operation, 24 individually controllable outlets-20 C13 and four C19-distribute AC power to connected equipment. Each 230V outlet is accompanied by an LED that illuminates when the outlet is ramped up and ready to be used. The outlets are split into two load banks, each protected by a circuit breaker that trips if the bank’s connected load exceeds its maximum load rating. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the load for each outlet bank separately and the total connected load. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. The firmware can be easily upgraded to ensure the PDU continues to perform at its best as connected equipment adds new features.
Ā LX Platform Network Management Card Allows Remote Access 24/7
TheĀ  Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 0U PDU mounts vertically using the included toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. A 10-foot cord with IEC 309 32A Blue (2P+E) input plug connects the single-phase PDU to a compatible AC power source, generator or protected UPS system.
TAA-Compliant for GSA Schedule Purchases
The PDUMV32HVNETLX is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
SKU: PDUMV32HVNETLX Category: Tag:
Category Attribute Value
Overview Brand Tripp Lite
Product Line Eaton
Model 7.7kW Single-Phase Switched PDU with LX Platform Interface, 230V Output, IEC 309 32A Blue, 10 ft. (3.05 m) Cord, 0U, TAA
Manufacturer Tripp Lite
Network & Communication Remote Management HTTP, HTTPS, NTP, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, USB
Connectivity Input Connectors 1
Interface Provided LAN – RJ-45, Management (USB) – Micro-USB Type B, USB – 4 pin USB Type A
Power Emergency Power Off Amp meter, LCD display, LED indicators, Monitored per outlet, Switched, Universal locking output plug
Frequency Provided 50/60 hertz
Input Connector Type Power IEC 60309 32A
Input Wiring 1-phase
Max Input Current 32 ampere
Output Connector Quantity 24
Output Connector Type 20 x power IEC 60320 C13, 4 x power IEC 60320 C19
Power Output Connectors Details 20 x power IEC 60320 C13 10 A, 4 x Power IEC 60320 C19 16 A
Power Provided 7.4 kilograms per millimetere (likely means ~7.4 kVA)
Provided Voltage AC 230 volt
Required Voltage AC 230 volt
Technical Information Form Factor (Power Device) Rack-mountable
Operating Humidity 5 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information Cord Length 10 ft
Features Vertical orientation
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Power cable – integrated – 10 ft
Included Accessories Mounting bracket
Dimensions & Weight Height 69.9 inch
Height (Rack Units) 0
Weight 12.5 lbs
Width 2.2 inch
Depth 4.3 inch
Physical Characteristics Color Category Black
