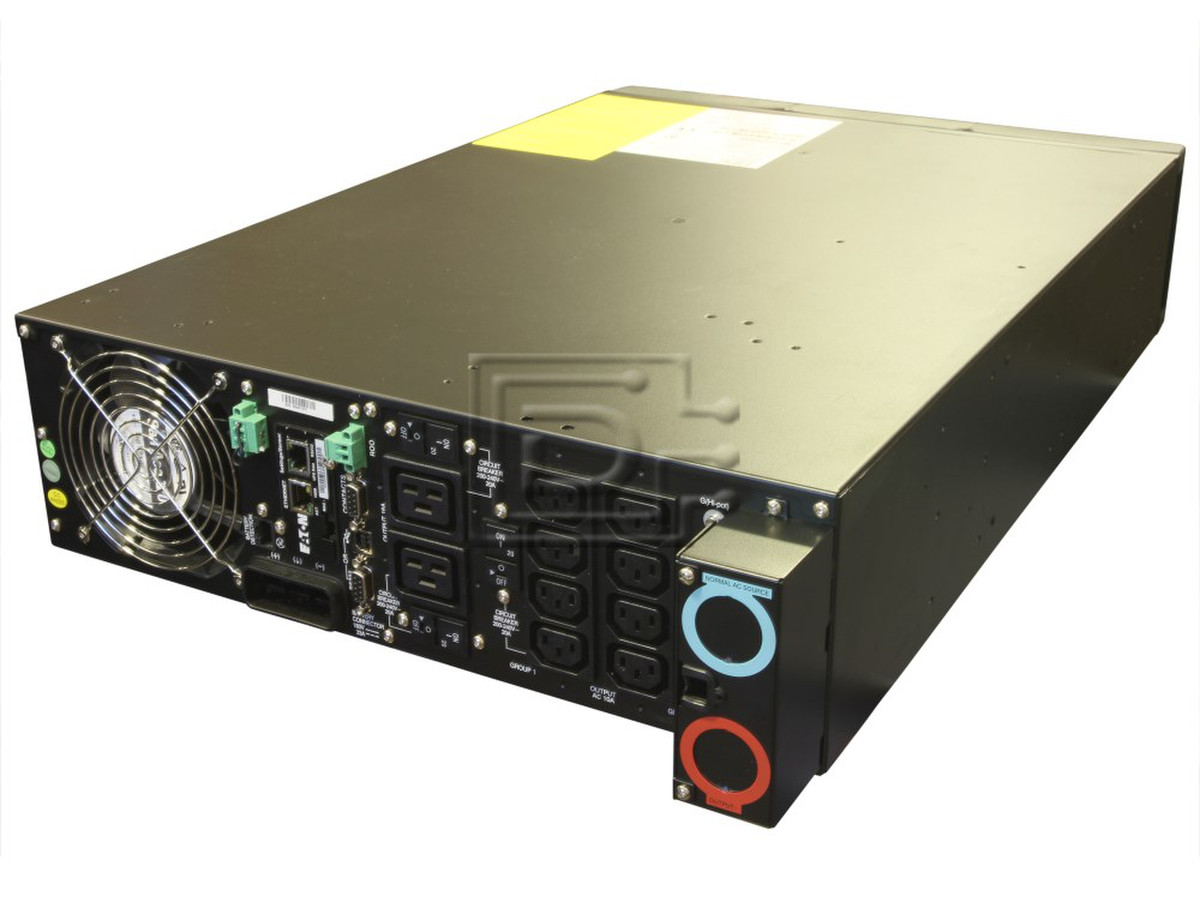

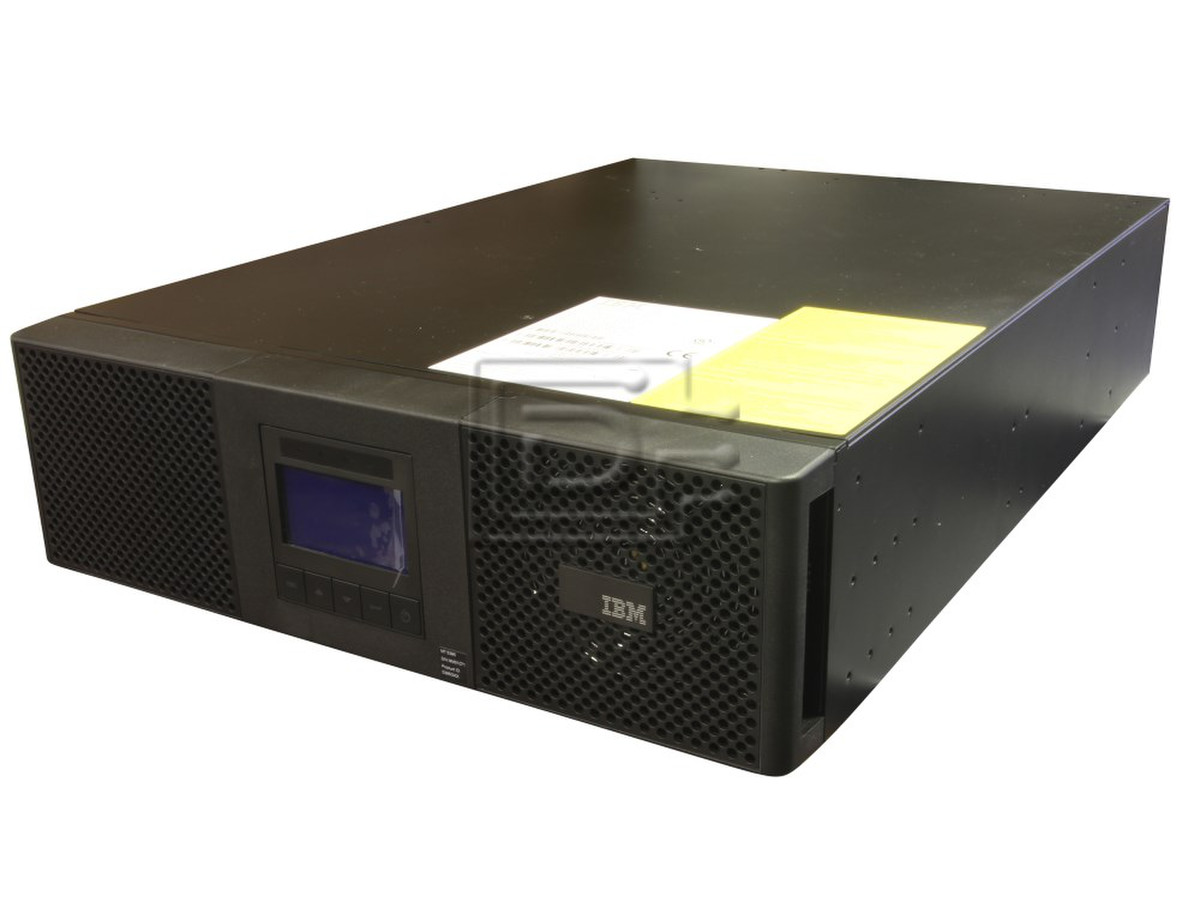

Eaton 9SX UPS 6000VA / 5000W Uninterruptible Power Supply

Add to Wishlist

Interface Types: IEC C13, IEC C19

Wattage/VA: 6000W

Voltage: 110-240V Multi

AED14,999.00

Add to Wishlist

Performance and Efficiency

• Double conversion topology. The Eaton 9SX constantly monitors power conditions and regulates voltage and frequency.

• With up to 94% efficiency in online double conversion mode the 9SX provides the highest efficiency level in its class to reduce energy & cooling costs.

• With a 0.9 power factor the 9SX delivers 28% more power than UPS in its class. It powers more servers than other UPSs with equivalent VA ratings and lower power factors.

Availability and Flexibility

• The internal bypass allows service continuity in case of internal fault. Batteries are hot-swappable from the front panel without powering down critical systems.

• With its rack/tower versatile form factor the 9SX can be installed in any environment (rack kit provided as standard).

• Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%.

• More runtime can be added with up to 12 external hotswappable battery modules, able to run systems for hours if necessary. The additional battery modules are automatically recognised by the UPS.

Manageability

• The new graphical LCD provides clear information on the UPS’s status and measurements on a single screen (in seven languages). LCD display position can be adjusted to offer the best viewable angle for tower and rack usage.

• The 9SX can meter energy consumption. kWh values can be monitored using the LCD or Eaton’s Intelligent Power® Software Suite.

• Load segment control enables prioritised shutdowns of non-essential equipment to maximise battery runtime for critical devices. It can also be used to remotely reboot locked-up equipment or to manage scheduled shutdowns and sequential start-ups.

• The 9SX offers Serial, USB and relay (4 dry contacts) connectivity, plus an extra slot for an optional card (Modbus, Network or Relay). 9SX also provides Remote Power off function. Eaton’s Intelligent Power® Software Suite is included with each UPS.

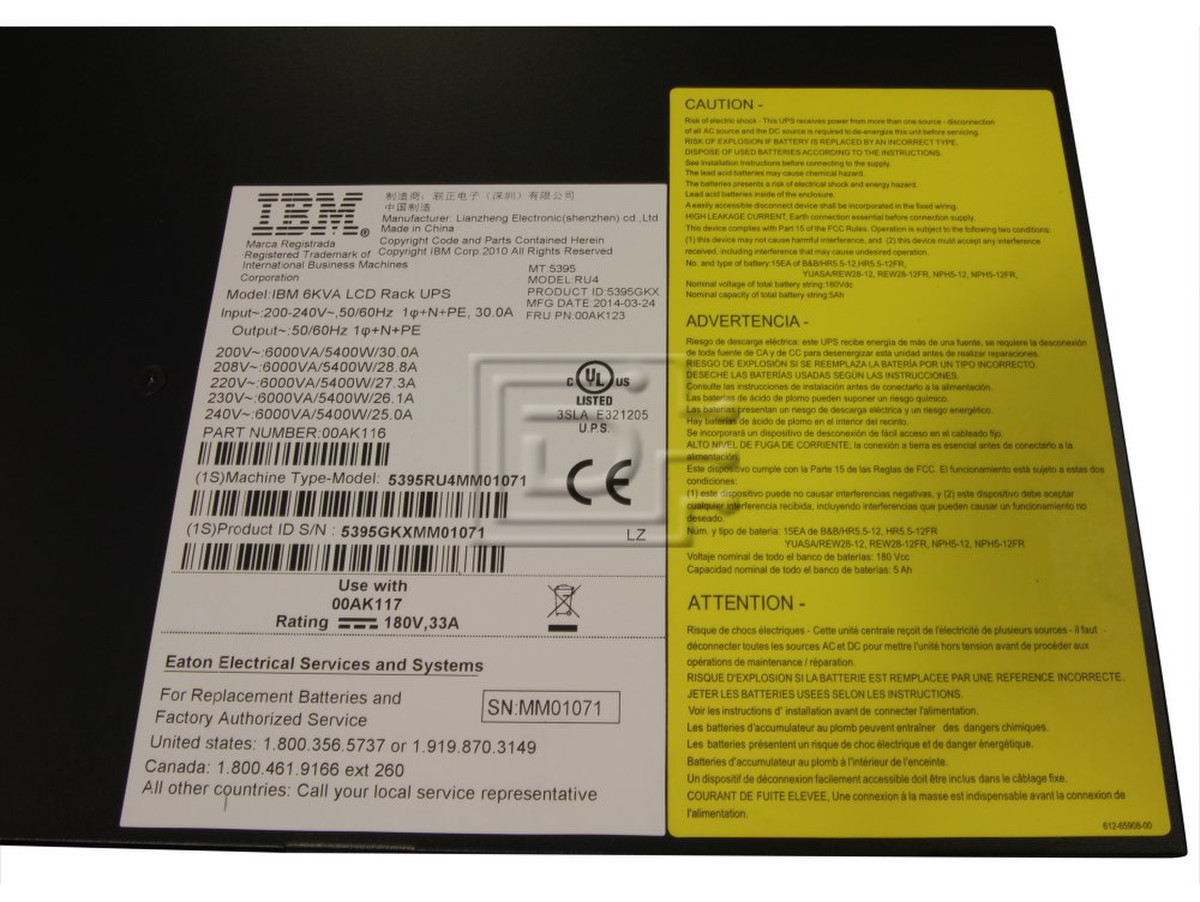

Alt MPN’s: IBM 5395, 5395-RU4, 5395GKX, 00AK116, 00AK123

SKU: 9SX6KIRT Category:
Technical Specifications
Output
Output Power Capacity 200/208/220/230/240V +/- 1%
Max Configurable Power 5000 VA / 6000W
Nominal Output Voltage 200/208/220/230/240V
Output Frequency 50/60 Hz autoselection

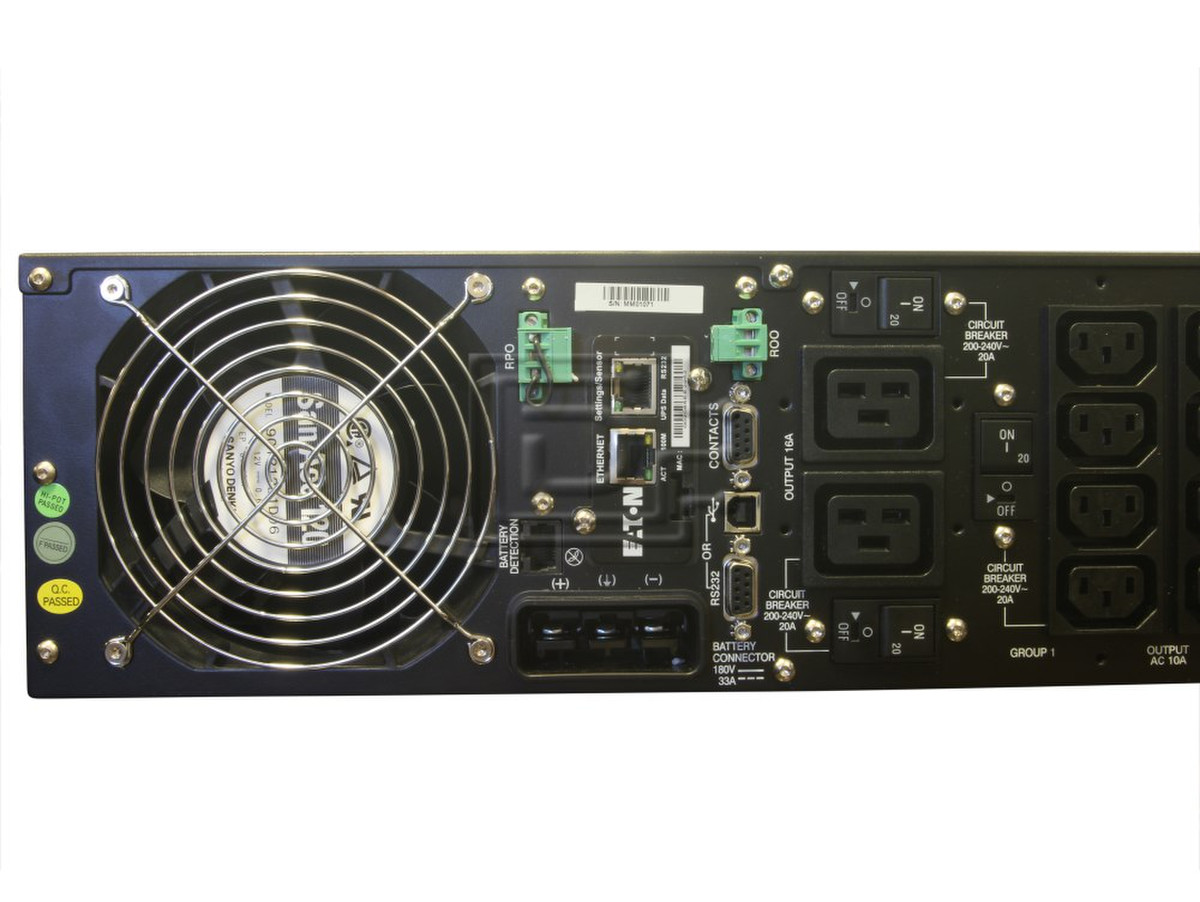

Output Connections (8) IEC 320 C13 / (2) IEC 320 C19
Input
Nominal Input Voltage 200/208/220/230/240V
Input Frequency 50/60 Hz autoselection
Input Connections Hardwired – (Manual describes terminal block layout)
Input voltage range for main operations 176-276V without derating (up to 100-276V with derating)
Batteries & Runtime
Battery Management ABM and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability EBM with Rack Kit
Communications
User Interface Multilingual graphical LCD Display
Communication Ports 1 USB Port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously), 4 dry contacts (DB9), 1 mini terminal block for remote On/Off and 1 for remote power Off
Communications Slot 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
Environments & Standards
Audible Noise <45dB
Operating Temperatures 0 to 40 degrees celcius continuous
Safety Markings IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings IEC/EN 62040-2, FCC Class A, IEC/EN 62040-3 (Performance), C-Tick
Approvals CE, CB report (TUV), UL
