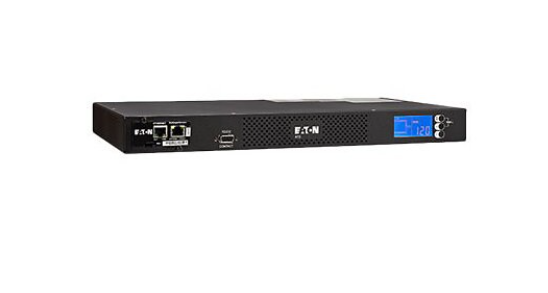

Eaton ATS rack PDU, 1U, (2) 5-15P input, 1.44 kW max, 120V, 12A, 10 ft cord, Single-phase, Outlets: (10) 5-15R

Add to Wishlist

Quick tech specs

  • 12A 1U ATS PDU allows real-time current metering/remote power monitoring to help prevent circuit overloads/ensure load balance
  • Power distribution unit switches from primary to secondary power source in milliseconds
  • Dual 5ft cords w/ NEMA 5-15P inputs connect to separate power sources
  • Ethernet interface allows you 24/7 remote access
  • Digital ammeter for on-site real-time load monitoring helps prevent overloads
  • (10) NEMA 5-15R outlets and NEMA 5-15P Input

AED6,099.00

Add to Wishlist

Quick tech specs

  • 12A 1U ATS PDU allows real-time current metering/remote power monitoring to help prevent circuit overloads/ensure load balance
  • Power distribution unit switches from primary to secondary power source in milliseconds
  • Dual 5ft cords w/ NEMA 5-15P inputs connect to separate power sources
  • Ethernet interface allows you 24/7 remote access
  • Digital ammeter for on-site real-time load monitoring helps prevent overloads
  • (10) NEMA 5-15R outlets and NEMA 5-15P Input
SKU: EATS115 Category: Tag:
Overview
Specification Details
Brand Eaton
Product Line Eaton eATS ePDU
Model EATS115
Manufacturer Powerware Systems
Network & Communication
Specification Details
Remote Management Interface Ethernet 10/100, RS-232
Connectivity
Specification Details
Input Connectors 2
Interface Provided 1 x RJ-45 (Fast Ethernet), 1 x RJ-45 (RS-232)
Power
Specification Details
Emergency Power Off LCD display, Voltage monitoring
Frequency 50 – 60 hertz
Input Connector Type Power NEMA 5-15P
Max Input Current 12 ampere
Output Connector Quantity 8
Output Connector Type Power NEMA 5-15
Power Output Connectors Details 8 x power NEMA 5-15
Power Provided 1.44 kilograms per millimetere
Required Voltage AC 120 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Product Information
Specification Details
Country North America
Features Horizontal orientation
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Specification Details
Cables 2 x power cable 10 ft
Dimensions & Weight
Specification Details
Height 1.7 inch
Height (Rack Units) 1
Weight 9.15 lbs
Width 17.2 inch
Depth 9.8 inch
Physical Characteristics
Specification Details
Color Category Black
