| Category | Field | Details |
|---|---|---|
| General Information | Product Name | Eaton ATS Rack PDU 1U 208-240V 24A 5.76 kW max Hardwired Single-Phase PDU |
| Manufacturer Part Number | EATS30H | |
| Product Type | Remote Power Management Switch | |
| Product Model | eATS30 | |
| Network | Ethernet Technology | Ethernet |
| Number of Network (RJ-45) Ports | 2 | |
| Network (RJ-45) | Yes | |
| Physical Characteristics | Height | 1.7″ |
| Width | 17.3″ | |
| Depth | 13.8″ | |
| Miscellaneous | Country of Origin | China |
Power distribution unit

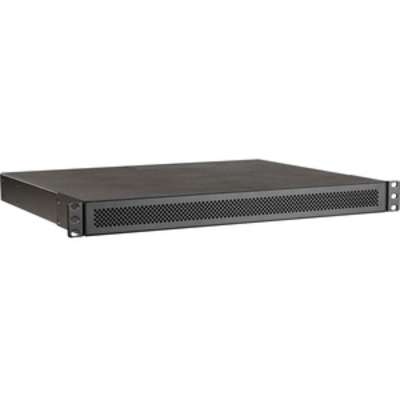

Eaton ATS Rack PDU 1U 208-240V 24A 5.76 kW max Hardwired Single-Phase PDU
- Provides power redundancy to equipment with 1 or 2 power supplies
- Automatically transfers power from the primary source to a secondary source if there is an issue with the primary
- Power is transferred back to the primary source when it is automatically restored
- Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD
- Offers remote monitoring and email alerts with included network card
AED8,699.00

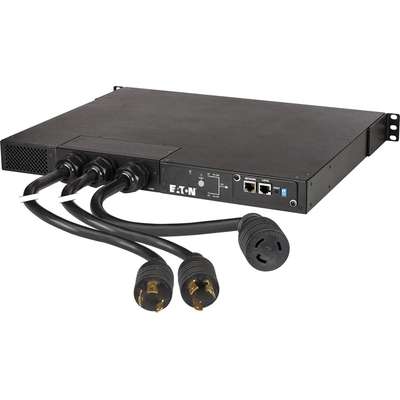

The Eaton EATS30 Monitored rack automatic transfer switch operates at 200-240 volt single-phase 24 amps. The dual inputs and single output are through a terminal block for hard wired power or flexible cord capability. The transfer switch features fast 10 ms transfer between sources, supports out-of-phase (non-synchronous) power sources and has remote monitoring through the included network card using SNMP or a web browser.
- Dual input rack automatic transfer switch with intelligent control and monitoring
- Fast transfer time of 10ms to ensure equipment uptime and reliability
- Intelligent control circuitry supports out-of-phase power sources (non-synchronized) for reliablity
- Network connectivity supports voltage, current and transfer monitoring over SNMP or using a standard web browser
- Supports high power devices or allows for connection of a rack power distribution unit to support multiple receptacles
- Low profile, 1U rackmount design
