Power distribution unit

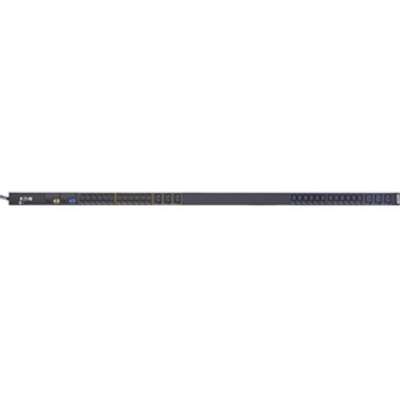

Eaton Basic Rack PDU 1.92kW max 200-240V 16A TAA Compliant Single-Phase PDU
- ePDU G3 models feature IEC outlet grip, color-coded outlet sections, low-profile form factor and a high operating temperature for best-in-class power management
- Available in horizontal and vertical solutions for a wide range of key applications
- Clearly labeled circuits simplify load balancing
- Cost effective solutions to meet your Basic needs
- Ranges from 15A to 30A up to 208V to offer a variety of plug and outlet configurations
- UL 60950 compliant to meet industry requirements
AED7,199.00
Designed for reliable and cost effective power distribution, Basic ePDUs have the form factor and receptacle choices to meet the needs of the demanding data center architect. With power levels ranging from 1.4 kW all the way to 17 kW, Eaton has the right Basic ePDU for any application. The new ePDU G3 Basic models feature Eaton’s patented IEC outlet grip plug retention, color-coded outlet sections, a low-profile form factor and a high operating temperature.
| Category | Specification |
|---|---|
| General Information | |
| Product Name | Eaton Basic Rack PDU 1.92kW max 200-240V 16A TAA Compliant Single-Phase PDU |
| Product Line | ePDU |
| Product Series | Basic |
| Product Model | EBA110-10 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Basic |
| Plug / Connector Type | NEMA L6-30P |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 24 x IEC 60320 C13 6 x IEC 60320 C19 |
| Power Description | |
| Input Current | 24 A |
| Physical Characteristics | |
| Mount Type | Rack-mountable |
| Rack Height | 36U |
| Miscellaneous | |
| Country of Origin | United States |
| Other Information | |
| Product Family | ePDU Basic |
