Power distribution unit

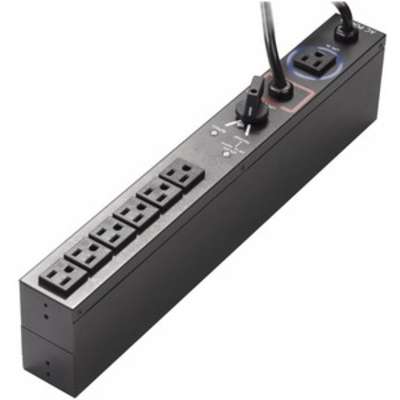

Eaton Basic Rack PDU Hotswap Manual Bypass MBP 1U 110-125V 12A 1.44 kW 5-15P
- Additional output receptacles for Eaton UPSs
- UPS mounting: Rear panel
- 1U and 2U form factors
- Clearly labeled circuits for load balancing
- High-density
AED2,299.00
The Eaton FlexPDU is a basic function power distribution unit with a short power cord for easy, close mounting to a UPS. FlexPDUs are available with a variety of output receptacles, for connection to a wide range of equipment.
The Eaton HotSwap Maintenance Bypass enhances availability by providing service continuity in all situations and facilitates hot-swappable UPS battery replacement.
General Information
| Attribute | Details |
|---|---|
| Product Name | Eaton Basic Rack PDU Hotswap Manual Bypass MBP 1U 110–125V 12A 1.44 kW 5-15P |
| Manufacturer Part Number | EHBPL1500R-PDU1U |
| Product Type | PDU |
Technical Information
| Attribute | Details |
|---|---|
| Plug / Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
Power Description
| Attribute | Details |
|---|---|
| Power Rating (VA) | 1440 VA |
Physical Characteristics
| Attribute | Details |
|---|---|
| Rack Height | 2U |
| Height | 2.1″ |
| Width | 17.3″ |
| Depth | 3.8″ |
Miscellaneous
| Attribute | Details |
|---|---|
| Country of Origin | China |
