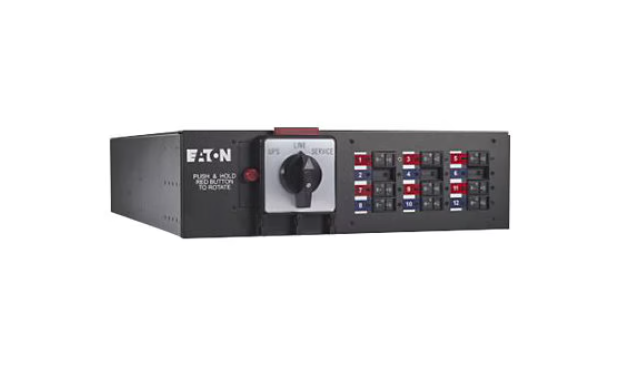

Eaton Bypass Power Module BPM125ER – bypass switch

Add to Wishlist

Quick tech specs

  • Bypass switch (rack-mountable / external)
  • output connectors: 9
  • black
  • Split-Phase
  • 3U

AED23,699.00

Add to Wishlist

Know your gear

Compatible with Eaton 9PXM, 9170+, 9155 and 8-10 kVA 9PX UPS models, the Eaton Bypass Power Module (BPM) acts as both a maintenance bypass and a panelboard. Providing you with increased flexibility, the BPM lowers upfront and electrical costs while protecting against downtime during maintenance. While a centralized UPS can provide value over distributed designs, power distribution and reliability become more critical. Because they are hardwired, UPSs over 6 kVA almost always require a maintenance bypass to directly connect utility power to the IT equipment. In the event of scheduled UPS maintenance, a service event or failure, the Eaton BPM maintenance bypass functionality helps keep critical loads running. In addition, it enables you to distribute power from the UPS to connected equipment.
SKU: BPM125ER Category: Tag:
Category Attribute Value
Overview Brand Eaton
Product Line Eaton Bypass Power Module
Model BPM125ER
Manufacturer Powerware Systems
Power Input Connector Type Hardwire
Input Wiring Split-Phase
Max Input Current 125 ampere
Output Connector Quantity 9
Output Connector Type Power NEMA 5-20R, Power NEMA L6-30
Power Output Connectors Details 3 x power NEMA L6-30, 6 x power NEMA 5-20R
Technical Information Form Factor (Power Device) Rack-mountable / external
Product Information Packaged Quantity 1
Product Type Bypass Switch
Rack Mounting Kit Included
Subcategory Power converters, splitters and accessories
Dimensions & Weight Height 5.1 inch
Height (Rack Units) 3
Width 17.3 inch
Depth 26.5 inch
Physical Characteristics Color Black
Color Category Black
