Power distribution unit

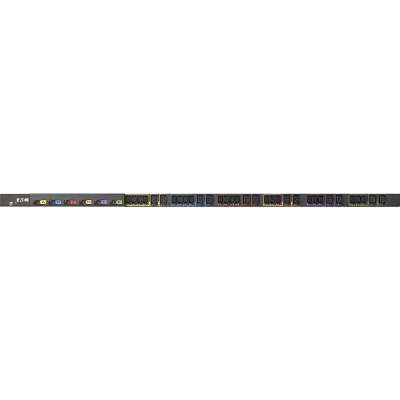

EATON Epdu Ba 38U-A L21-30P 24A 3P Out
- ePDU G3 models feature IEC outlet grip
- Available in horizontal and vertical solutions for a wide range of key applications
- Clearly labeled circuits simplify load balancing
- Cost effective solutions to meet your Basic needs
- Ranges from 15A to 30A up to 208V to offer a variety of plug and outlet configurations
- UL 60950 compliant to meet industry requirements
AED5,599.00
Eaton G3 Basic ePDUs provide reliable power distribution for IT and data center applciations. Desgined to operate at high temperatures for high reliability and made from light-weight aluminum for ease of installation.
- IEC outlet grip plug retention secures plugs in place using standard cables
- High operating temperature (140F / 60C) for containment or hot network closet environments
- Color coded outlet sections simplify load balancing
- Low profile form factor reduces interference into the rail space
- Ease of installation using pre-installed buttons for tool-less mounting
- Designed for mission critical IT or data center applications
General Information
| Field | Details |
|---|---|
| Product Name | Epdu Ba 38U-A L21-30P 24A 3P Out |
| Manufacturer Part Number | EBA304-10 |
| Product Line | ePDU |
| Product Type | PDU |
Technical Information
| Field | Details |
|---|---|
| Plug / Connector Type | NEMA L21-30P |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 30 x IEC 60320 C13, 6 x IEC 60320 C19 |
Power Description
| Field | Details |
|---|---|
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 120 V AC – 208 V AC |
| Power Rating (Watt) | 8640 W |
| Input Current | 24 A |
Physical Characteristics
| Field | Details |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 38U |
| Cord Length | 10 ft |
| Height | 66.5 in / 1689.1 mm |
| Width | 2.1 in / 52.07 mm |
| Depth | 2.1 in / 53.34 mm |
