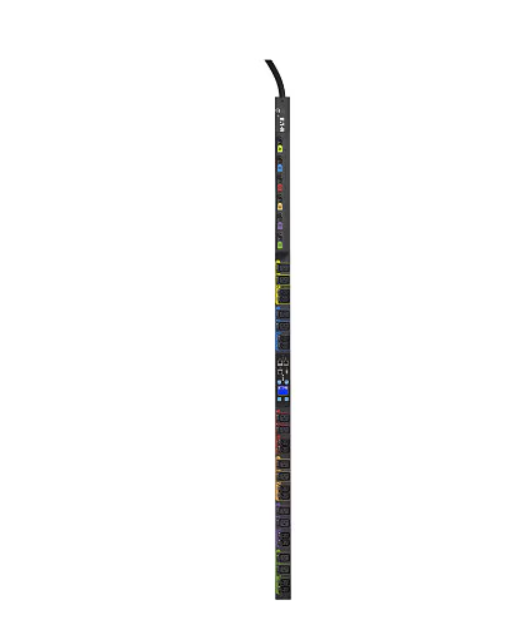

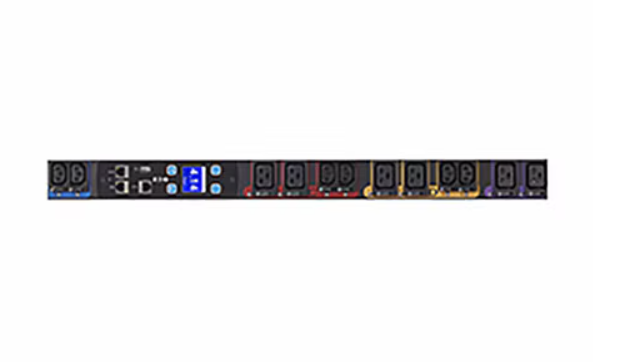

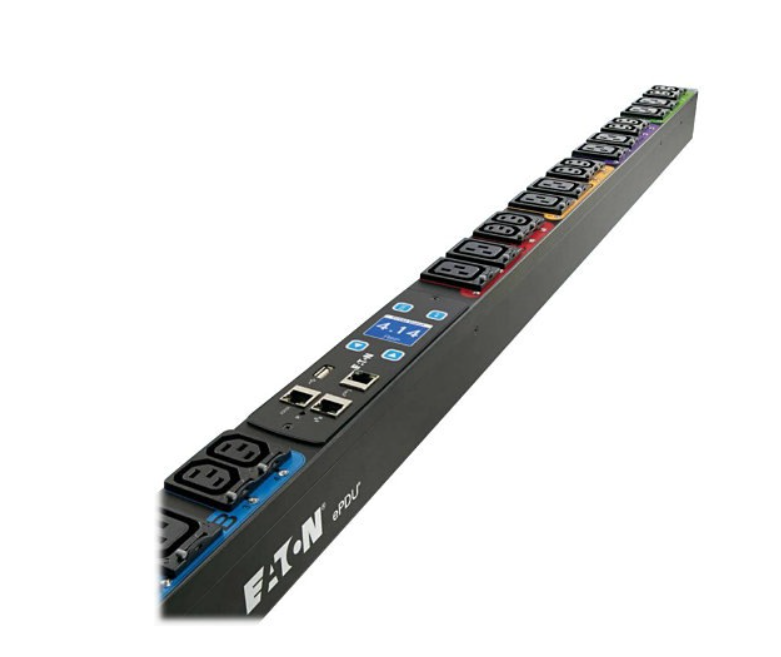

Eaton ePDU G3 Managed – power distribution unit – 14.4 kW

Add to Wishlist

Quick tech specs

  • Power distribution unit (rack-mountable)
  • 14.4 kW
  • Ethernet 10/100, RS-232
  • output connectors: 24
  • black
  • AC 200-240 V
  • 3-phase
  • input: CS8365
  • 38U

AED19,099.00

Add to Wishlist

Know your gear

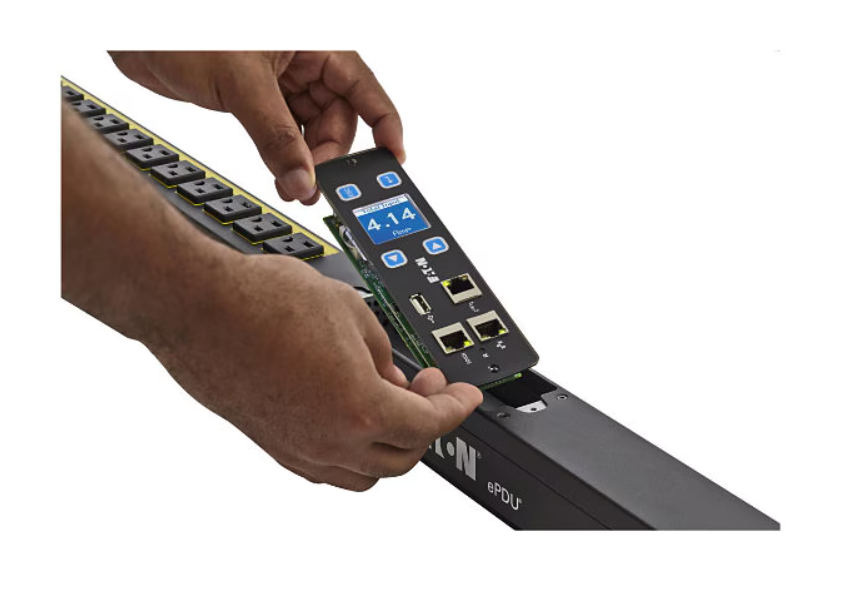

Eaton ePDU G3 Managed technology provides a best-in-class design featuring billing grade accuracy monitoring at the outlet level on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Outlet switching allows for on, off or reboot of individual outlets, which reduces the cost of managing remote or local IT data center environments. The robust design is UL rated to operate at 140 degrees F (60 degrees C) ambient operating temperature for containment and high temperature environments.
SKU: EMACPH36JA4A4K2 Category: Tag:
Overview
Attribute Value
Brand Eaton
Product Line Eaton ePDU G3
Model Managed
Manufacturer Powerware Systems
Network & Communication
Attribute Value
Remote Management Interface Ethernet 10/100, RS-232
Connectivity
Attribute Value
Input Connectors 1
Interface Provided 1 x management (Ethernet) – RJ-45, 1 x management (RS-232) – RJ-45
Power
Attribute Value
Emergency Power Off LCD display, Vertical orientation, Voltage monitoring
Frequency 50 – 60 hertz
Input Connector Type Power CS8365
Input Wiring 3-phase
Max Input Current 40 ampere
Output Connector Quantity 24
Power Output Connectors Details 12 x power IEC 60320 C13, 12 x power IEC 60320 C19
Power Provided 14.4 kilograms per millimetere
Required Voltage AC 200-240 volt
Technical Information
Attribute Value
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 140 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Protection Type Circuit breaker
Product Information
Attribute Value
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Attribute Value
Cables Power cable – integrated – 6 ft
Dimensions & Weight
Attribute Value
Height 66.5 inch
Height (Rack Units) 38
Width 2 inch
Depth 2.6 inch
Physical Characteristics
Attribute Value
Color Black
Color Category Black
