| General Information | |

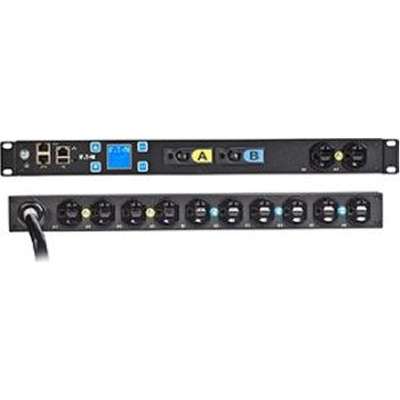

| Product Name | Epdu Mi 1u In: L5-30P 24A 1P Out: 12X5-2OUT: 12X5-2 |
| Manufacturer Part Number | EMI3MGB5EMB13A1 |
| Product Line | ePDU |
| Product Model | EMIT03-10 |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Plug / Connector Type | NEMA L5-30P |
| Plug / Connector Detail | 1 x NEMA L5-30P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 12 x NEMA 5-20R |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 24 A |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| Height | 19″ |
| Width | 1.7″ |
| Depth | 8″ |
| Miscellaneous | |
| Country of Origin | United States |
| Other Information | |
| Product Family | ePDU |
