Power distribution unit

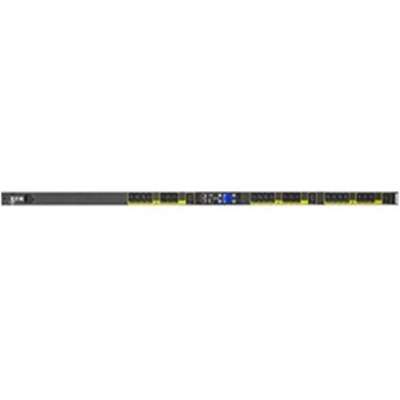

EATON Epdu MO 36U-A L6-20P/C20 16A 1P Out TAA
- Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
- Monitors entire environment remotely over the network from a single interface
- Single-phase and three-phase configurations provide solutions for SMB and networking closets
- Provides ±1% billing grade accuracy
- Cisco EnergyWise Certified- Eaton’s new ePDUs are Cisco EnergyWise Certified
AED8,699.00
Metered Outlet ePDUs allow you to measure power consumption at the outlet level, gain Level 3 power usage effectiveness (PUE), and to perform accurate department and customer billing. Metered Outlet models are the perfect solution for anyone requiring the benefits of outlet level monitoring without needing to control individual outlets.
General Information
| Field | Details |
|---|---|
| Product Name | Epdu MO 36U-A L6-20P/C20 16A 1P Out TAA |
| Product Line | ePDU |
| Product Series | Metered |
| Product Model | EMO115-10 |
| Product Type | PDU |
Technical Information
| Field | Details |
|---|---|
| Plug/Connector Type | IEC 60320 C20 |
| Plug/Connector Detail | 1 x IEC 60320 C20 |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 21 x IEC 60320 C13, 3 x IEC 60320 C19 |
Interfaces/Ports
| Field | Details |
|---|---|
| Network (RJ-45) | Yes |
Power Description
| Field | Details |
|---|---|
| Input Voltage | 120 V AC, 230 V AC |
| Input Voltage Range | 120 V AC – 230 V AC |
| Output Voltage | 120 V AC, 230 V AC |
| Power Rating (Watt) | 3840 W |
| Input Current | 16 A |
Physical Characteristics
| Field | Details |
|---|---|
| Mounting Orientation | Vertical |
| Rack Height | 36U |
| Height | 63.1 in / 1602.74 mm |
| Width | 2.1 in / 52.07 mm |
| Depth | 2.1 in / 53.086 mm |
