Power distribution unit

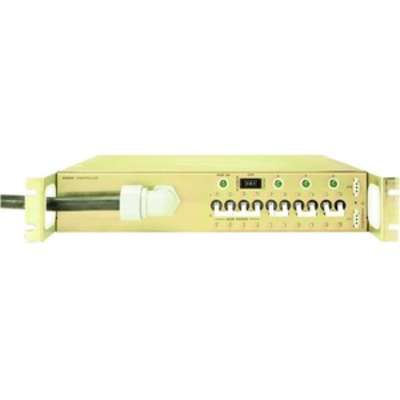

EATON Epdu Re 2U L21-30P 8 5-20
- High-quality power distribution – Provides reliable power to critical IT systems
- Flexible outlet options – Supports various types of equipment
- Robust design – Built for long-term reliability
AED15,499.00
Remote emergency power off (REPO) rack PDUs enable immediate and complete power off control from one button. These PDUs are hardwired and the power off switch can be housed anywhere in the data center for quick and easy access, should the need for immediate shutdown arise.
General Information
| Field | Details |
|---|---|
| Product Name | Epdu Re 2U L21-30P 8 5-20 |
| Manufacturer Part Number | PC975-R |
| Product Line | ePDU |
| Product Type | PDU |
Technical Information
| Field | Details |
|---|---|
| Phase | Three Phase |
| Plug / Connector Type | NEMA L21-30P |
| Receptacle Type | NEMA 5-20R, NEMA L6-20R |
| Receptacle Detail | 8 x NEMA 5-20R, 3 x NEMA L6-20R |
| Protection Type | Circuit Protection, Single Pole |
Management
| Field | Details |
|---|---|
| Remote Outlet Switching | No |
Power Description
| Field | Details |
|---|---|
| Input Voltage | 120 V AC, 230 V AC |
| Power Rating (Watt) | 8640 W |
| Input Current | 24 A |
Physical Characteristics
| Field | Details |
|---|---|
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.4 in / 86.36 mm |
| Width | 14.5 in / 368.3 mm |
| Depth | 19 in / 482.6 mm |
