Power distribution unit

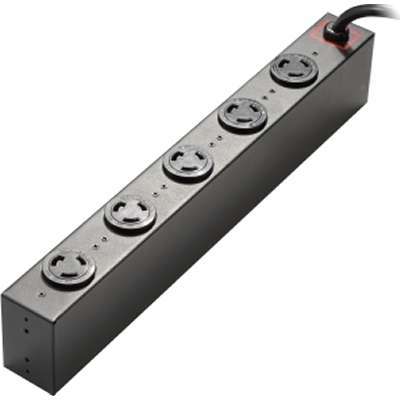

Eaton Flex PDU, 120V, 5-20P/L5-20P to (5) L5-20R, Use with 5130, Evol/S, Pulsar/M
AED1,299.00
The Eaton FlexPDUs are designed to increase power distribution from a single UPS and provide more flexibility.
The Eaton HotSwap Maintenance Bypass enhances availability by providing service continuity in all situations and facilitates hot-swappable battery replacement.
| Category | Attribute | Value |
|---|---|---|
| General Information | Product Name | Eaton Flex PDU, 120V, 5-20P/L5-20P to (5) L5-20R, Use with 5130, Evol/S, Pulsar/M |
| Product Line | ePDU | |
| Product Series | FlexPDU | |
| Product Model | EFLXL2000R-PDU1UL | |
| Product Type | PDU | |
| Technical Information | Plug / Connector Type | NEMA 5-20P, NEMA L5-20P |
| Plug / Connector Detail | 1 x NEMA 5-20P 1 x NEMA L5-20P |
|
| Receptacle Type | NEMA L5-20R | |
| Receptacle Detail | 5 x NEMA L5-20R | |
| Power Description | Input Voltage | 120 V AC |
| Output Voltage | 125 V AC | |
| Power Rating (Watt) | 1920 W | |
| Input Current | 16 A | |
| Physical Characteristics | Mount Type | Rack-mountable |
| Rack Height | 1U | |
| Cord Length | 3 ft | |
| Height | 1.8″ | |
| Width | 19″ | |
| Depth | 2.4″ | |
| Other Information | Product Family | ePDU FlexPDU |
| Certifications & Standards | UL 1778 |
