Power distribution unit

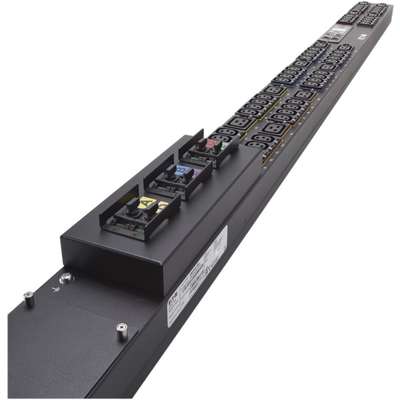

Eaton Fuse Disconnect Rack PDU 17.3 kW max 230/400V 24A 0U Three-Phase PDU
- Higher amp interrupt rating compared to circuit breakers
- Ability to clear higher fault current

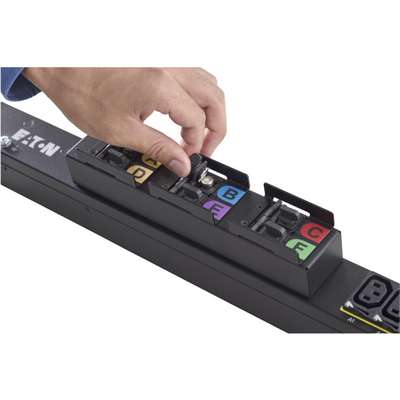

- Uses patented Eaton/Bussmann low profile Compact Circuit Protector (CCP) for hot-swap, finger-safe fuse changes
- New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain eight ePDUs to share the same network connection and IP address
- Clearly labeled circuits simplify load balancing
- Integrates with Eaton network closet, server room and data center solutions
AED14,199.00
Eaton’s fuse disconnect ePDUs offer higher amp interrupt capacity compared to circuit breakers giving the ability to clear higher fault currents. Additionally, the fuses can be safely changed without removing power to the PDU. Offered in Basic, Metered Input, Metered Outlet and Managed technologies, the fuse disconnect models include all of the same best-in-class features of the G3 platform.
| General Information | |
| Product Name | Eaton Fuse Disconnect Rack PDU 17.3 kW max 230/400V 24A 0U Three-Phase PDU |
| Manufacturer Part Number | EMI356-10 |
| Product Line | ePDU |
| Product Type | PDU |
| Technical Information | |
| PDU Type | Metered |
| Phase | Three Phase |

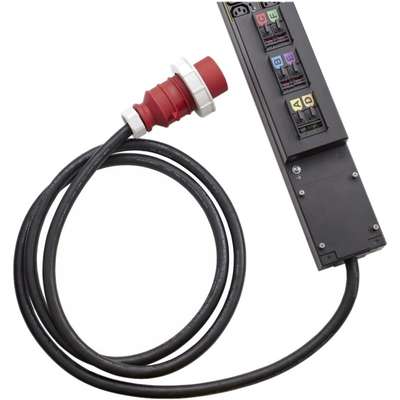

| Plug / Connector Type | 309-532P6W |
| Plug / Connector Detail | 1 x 309-532P6W |

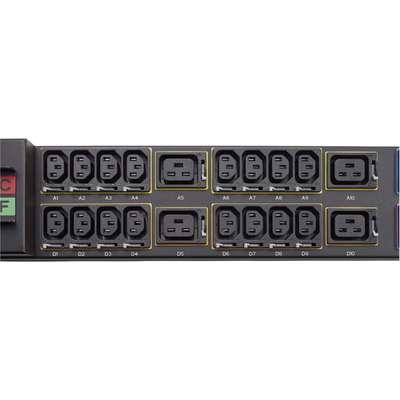

| Receptacle Type | IEC 60320 C13IEC 60320 C19 |
| Receptacle Detail | 48 x IEC 60320 C1312 x IEC 60320 C19 |
| Protection Type | Circuit Protection |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 230 V AC400 V AC |
| Output Voltage Range | 200 V AC – 240 V AC |
| Power Rating (Watt) | 17.30 kW |
| Input Current | 24 A |
| Physical Characteristics | |
| Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 2.1″ |
| Width | 4.1″ |
| Depth | 63.2″ |
