Power distribution unit

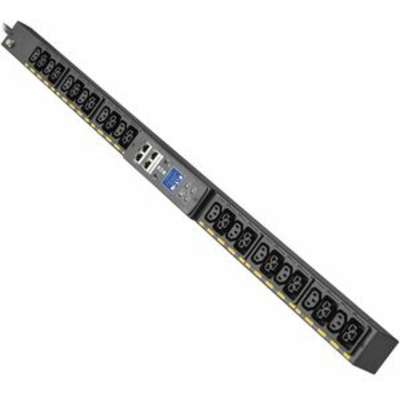

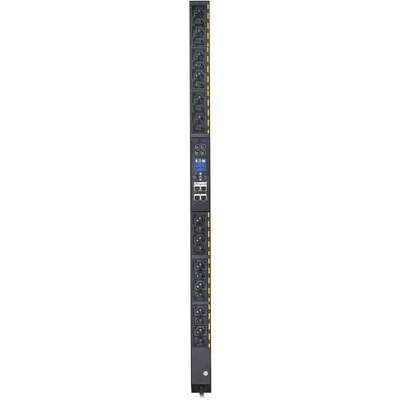

Eaton Managed G4 Rack PDU 0U 23U C20/L6-20 Input 10FT Cord 3.8KW
- High Power Capacity – Offers a high power capacity suitable for demanding IT infrastructure
- Remote Monitoring – Allows for remote monitoring and management via network interfaces
- Durable Construction – Built with durable materials to withstand heavy use
AED9,499.00
Single-Phase Managed PDU Ideal for Data Center Managers with Large-Scale Distributed IT
The EVMAL620A G4 Rack PDU is ideal for streamlining PDU procurement and deployment within a 42U rack in an enterprise data center, colocation data center or distributed IT infrastructure. Equipped to meet even the most diverse data center rack power needs, the EVMAL620A delivers versatile, enterprise-quality power distribution.
General Information
| Attribute | Details |
|---|---|
| Product Name | Eaton Managed G4 Rack PDU 0U 23U C20/L6-20 Input 10FT Cord 3.8KW |
| Manufacturer Part Number | EVMAL620A |
| Product Type | PDU |
| Product Series | G4 |
| Product Family | G4 |
Technical Information
| Attribute | Details |
|---|---|
| PDU Type | Managed |
| Plug / Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C13 IEC 60320 C39 |
| Receptacle Detail | 12 x IEC 60320 C13 12 x IEC 60320 C39 |
| Network (RJ-45) | Yes |
Power Description
| Attribute | Details |
|---|---|
| Input Voltage | 120 V AC 230 V AC |
| Input Voltage Range | 100 V AC – 240 V AC |
| Output Power Rating | 3800 W |
| Input Current | 16 A |
Environmental Conditions
| Attribute | Details |
|---|---|
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 140°F (60°C) |
Physical Characteristics
| Attribute | Details |
|---|---|
| Form Factor | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Cord Length | 10 ft |
| Height | 39.4″ |
| Width | 2.1″ |
| Depth | 2.1″ |
Miscellaneous
| Attribute | Details |
|---|---|
| Country of Origin | Philippines |
