Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Power distribution unit

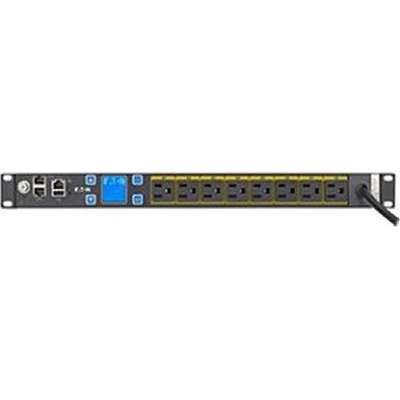

Eaton Metered Input Rack PDU 1.44 kW max 100-127V 1U 5-15P Single-Phase PDU
AED2,999.00
General Information
| Field | Details |
|---|---|
| Product Name | Eaton Metered Input Rack PDU 1.44 kW max 100-127V 1U 5-15P Single-Phase PDU |
| Manufacturer Part Number | EMIT08-10 |
| Product Line | ePDU |
| Product Series | Metered |
| Product Type | PDU |
Technical Information
| Field | Details |
|---|---|
| Plug / Connector Type | NEMA 5-15P |
| Plug / Connector Detail | 1 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
Interfaces/Ports
| Field | Details |
|---|---|
| Network (RJ-45) | Yes |
Power Description
| Field | Details |
|---|---|
| Input Voltage | 120 V AC |
| Power Rating (Watt) | 1440 W |
| Input Current | 12 A |
Physical Characteristics
| Field | Details |
|---|---|
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| Height | 19 in / 482.6 mm |
| Width | 1.6 in / 40.64 mm |
| Depth | 8 in / 203.2 mm |
