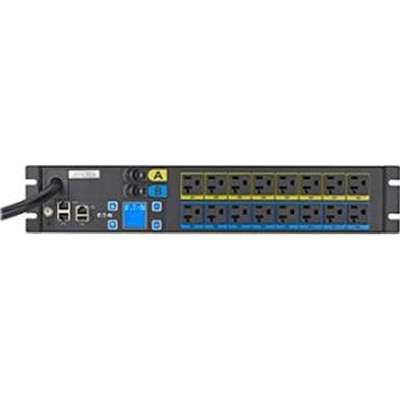

Eaton Metered Input Rack PDU 100-127V 2.88kW max L5-30P 2U Single-Phase PDU


AED5,499.00

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.

SKU: EMIU05-10 Category: Tag:
General Information
Product Name Eaton Metered Input Rack PDU 100-127V 2.88kW max L5-30P 2U Single-Phase PDU
Manufacturer Part Number EMIU05-10
Product Line ePDU
Product Series Metered
Product Type PDU
Technical Information
Plug / Connector Type NEMA L5-30P
Plug / Connector Detail 1 x NEMA L5-30P
Receptacle Type NEMA 5-20R
Receptacle Detail 16 x NEMA 5-20R
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Input Voltage 120 V AC
Power Rating (Watt) 2880 W
Input Current 24 A
Physical Characteristics
Mounting Orientation Horizontal
Mount Type Rack-mountable
Rack Height 2U
Height 19″
Width 3.4″
Depth 8.4″
