Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Power distribution unit

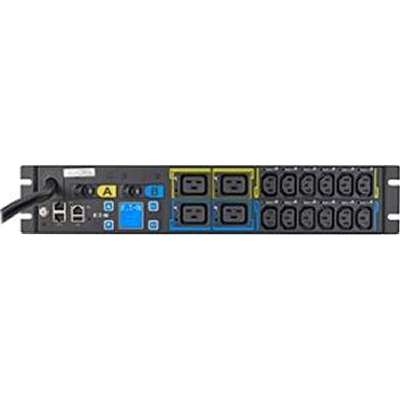

Eaton Metered Input Rack PDU 200-240V 5.76kW max L6-30P 2U Single-Phase PDU
- High Capacity – Suitable for environments with high power demands.
- Flexibility – Supports various input voltages for different applications.
- Advanced Monitoring Features – Includes features like phase-level metering for precise load control.
AED5,499.00
| General Information | |
| Product Name | Eaton Metered Input Rack PDU 200-240V 5.76kW max L6-30P 2U Single-Phase PDU |
| Manufacturer Part Number | EMIU06-10 |
| Product Line | ePDU |
| Product Series | Metered |
| Product Type | PDU |
| Technical Information | |
| Plug / Connector Type | NEMA L6-30P |
| Plug / Connector Detail | 1 x NEMA L6-30P |
| Receptacle Type | IEC 60320 C13IEC 60320 C19 |
| Receptacle Detail | 12 x IEC 60320 C134 x IEC 60320 C19 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 230 V AC |
| Power Rating (Watt) | 5760 W |
| Input Current | 24 A |
| Physical Characteristics | |
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 19″ |
| Width | 3.4″ |
| Depth | 8.4″ |
