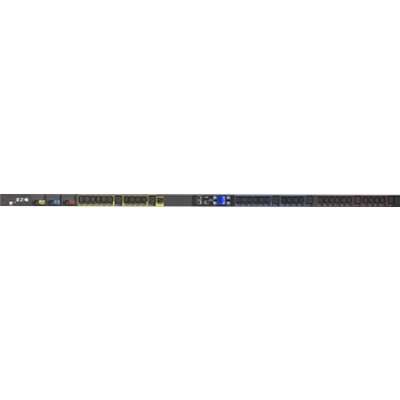

Eaton Metered Input Rack PDU 8.64 kW max 120/208V 24A 0U Three-Phase PDU

Add to Wishlist
  • New ePDU G3 models feature ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address
  • High density units support up to 25 1U/2U servers or three blade server chassis
  • Easy read digital ammeter reduces local monitoring time
  • Clearly labeled circuits simplify load balancing
  • Reading available via Ethernet connection over a network
  • UL Listed (UL489) branch circuit breakers meet UL60950-1 Edition requirements

AED9,699.00

Add to Wishlist

Eaton G3 Metered Input ePDUs provide a best-in-class design featureing billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.

  • IEC outlet grip plug retention secures plugs in place using standard cables
  • Advanced LCD pixel display for local display of current, voltage, power, energy and menu setup of parameters such as IP address or display rotation
  • High operating temperature (140F / 60C) for containment or hot network closet environments
  • Hot-swap meter for servicability of without removing power to the rack
  • +/- 1% billing grade accuracy for high accuracy reporting of energy usage
  • Daisy chain of IP addresses allows four devices to share one network connection
SKU: EMI310-10 Category: Tag:
General Information
Product Name Eaton Metered Input Rack PDU 8.64 kW max 120/208V 24A 0U Three-Phase PDU
Manufacturer Part Number EMI310-10
Product Line ePDU
Product Type PDU
Technical Information
Plug / Connector Type NEMA L21-30P
Receptacle Type IEC 60320 C13IEC 60320 C19

NEMA 5-20R
Receptacle Detail 30 x IEC 60320 C136 x IEC 60320 C19

1 x NEMA 5-20R
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Input Voltage 120 V AC230 V AC
Input Voltage Range 120 V AC – 208 V AC
Power Rating (Watt) 8640 W
Input Current 24 A
Physical Characteristics
Mount Type Rack-mountable
Rack Height 38U
Cord Length 10 ft
Height 66.5″
Width 2.1″
Depth 2.1″
