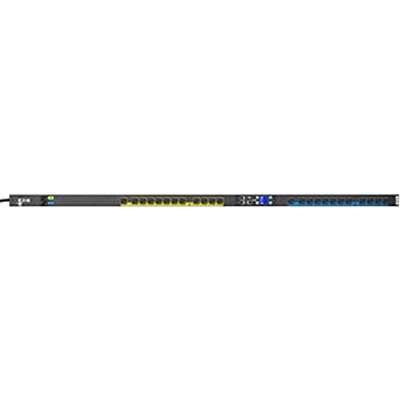

Eaton Metered Outlet Rack PDU 0U 120V 2.88 kW 24 5-20R Outlets L5-30P Input

Add to Wishlist
  • Measures outlet-level power consumption and delivers Level 3 PUE to increase accuracy and precision of energy analysis
  • Monitors entire environment remotely over the network from a single interface
  • Single-phase and three-phase configurations provide solutions for SMB and networking closets, blade server applications, and colocation and large data centers
  • Provides ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter, IEC grip outlets, color-coded circuits and the ability to daisy chain eight ePDUs to share the same network connection and IP address
  • Cisco EnergyWise Certified- Eaton’s new ePDUs are Cisco EnergyWise Certified

AED6,799.00

Add to Wishlist

Metered Outlet ePDUs allow you to measure power consumption at the outlet level, gain Level 3 power usage effectiveness (PUE), and to perform accurate department and customer billing. Metered Outlet models are the perfect solution for anyone requiring the benefits of outlet level monitoring without needing to control individual outlets.

SKU: EMO108-10 Category: Tag:
Category Specification
General Information
Product Name Eaton Metered Outlet Rack PDU 0U 120V 2.88 kW 24 5-20R Outlets L5-30P Input
Product Line ePDU
Product Series Metered
Product Model EMO108-10
Product Type PDU
Technical Information
Plug / Connector Type NEMA L5-30P
Plug / Connector Detail 1 x NEMA L5-30P
Receptacle Type NEMA 5-20R
Receptacle Detail 24 x NEMA 5-20R
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Input Voltage 120 V AC
Output Voltage 120 V AC
Power Rating (Watt) 2880 W
Input Current 24 A
Physical Characteristics
Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 38U
Height 66.5″
Width 2.1″
Depth 2.6″
