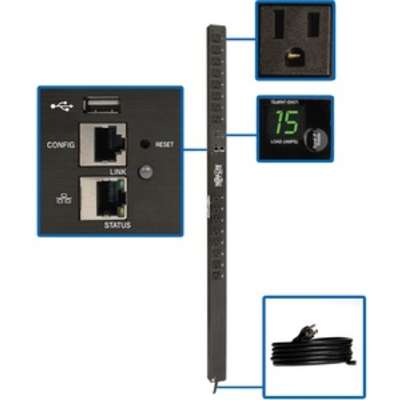

The PDUMNV15LX 1.4kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network interface. Recommended for any IT or industrial application, it features 16 NEMA 5-15R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
Power distribution unit
Eaton Tripp Lite PDU Monitored 1.4kW 120V 16 5-15R LX Platform Interface 0URM TAA
- 1.4kW 120V single-phase monitored PDU
- 16 NEMA 5-15R outlets with cord retention brackets
- Built-in LX Platform interface for 24/7 remote access

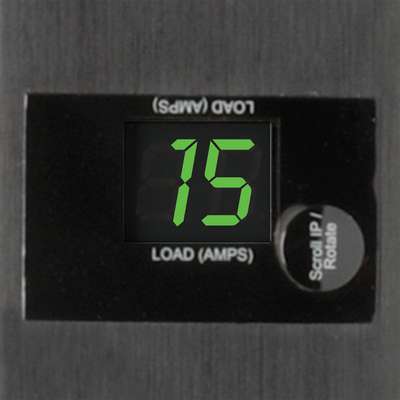

- Digital ammeter for on-site load monitoring in real time
- NEMA 5-15P input with 10 ft. AC power cord
AED4,299.00
Category | Attribute | Details |
---|
General Information | Product Name | Tripp Lite PDU Monitored 1.4kW 120V 16 5-15R LX Platform Interface 0URM TAA |
Product Model | PDUMNV15LX |
Product Type | PDU |
Technical Information | PDU Type | Monitored |
Phase | Single Phase |
Plug / Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 16 x NEMA 5-15R |
Power Description | Input Voltage | 120 V AC |
Input Voltage Range | 100 V AC – 127 V AC |
Output Voltage | 120 V AC |
Power Rating (Watt) | 1520 W |
Input Current | 15 A |
Physical Characteristics | Mounting Orientation | Vertical |
Mount Type | Rack-mountable |
Rack Height | 0U |
Height | 49″ |
Width | 2.2″ |
Depth | 1.8″ |
Miscellaneous | Country of Origin | Taiwan |
TAA Compliant | Yes |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
