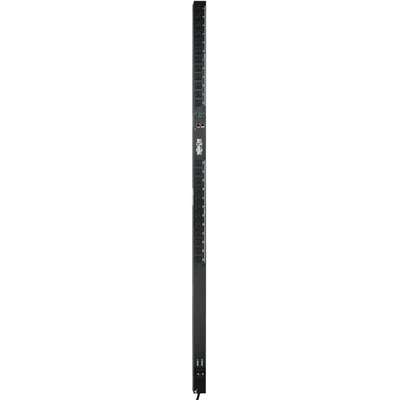

Eaton Tripp Lite PDU Monitored 2.9kW 120V 24 5-15/20R 30A LX Platform 0URM TAA


  • 2.9kW 120V single-phase monitored 0U PDU

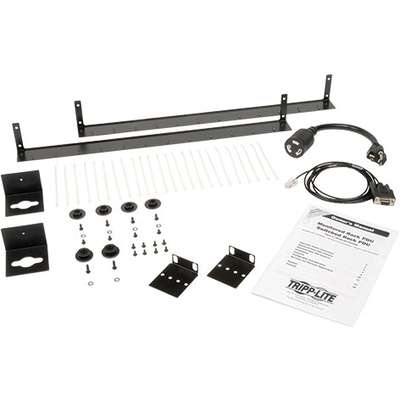

  • 24 NEMA 5-15/20R outlets with cord retention brackets
  • Built-in Java-free LX Platform interface for 24/7 remote access
  • Digital ammeter for on-site load monitoring in real time
  • NEMA L5-30P input with 10 ft. AC power cord

AED6,299.00

The PDUMNV30LX 2.9kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, the vertical PDU features 24 NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

SKU: PDUMNV30LX1 Category: Tag:

General Information

Attribute Details
Product Name Tripp Lite Series PDU Metered ISOBAR Surge Protection 15A 16 5-15/20R L5-30P 0U
Product Model PDUMV15-ISO
Product Type PDU

Technical Information

Attribute Details
PDU Type Metered
Phase Single Phase
Plug / Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 16 x NEMA 5-15R
Protection Type Surge Protection, Noise

Power Description

Attribute Details
Input Voltage 120 V AC
Output Voltage 120 V AC
Power Rating 1440 W
Input Current 12 A

Physical Characteristics

Attribute Details
Mounting Orientation Vertical
Mount Type Wall-mountable
Form Factor Rack
Rack Height 0U
Height 48.4″
Width 1.5″
Depth 3.1″
