Power distribution unit

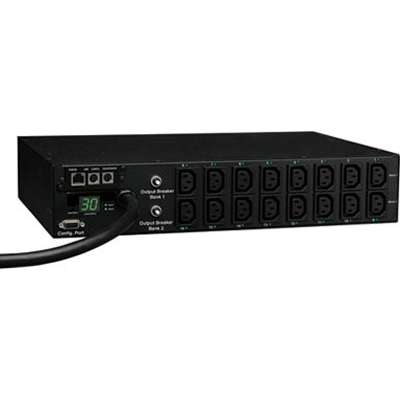

Eaton Tripp Lite PDU Single Phase Switched Horizontal 208/240V 5.8kw 16 C13 30A
- Switched 30A 208/240V PDU
- Reports voltage
- Visual current meter
- NEMA L6-30P input plug with attached 12 ft. / 3.6m line cord
- 16 switched C13 outlets with cord retention brackets
- Temperature
- Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
AED8,799.00
Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption.
The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
| Category | Attribute | Details |
|---|
| General Information | Product Name | Tripp Lite PDU Single Phase Switched Horizontal 208/240V 5.8kw 16 C13 30A |
| Product Model | PDUMH30HVNET |
| Product Type | PDU |
| Technical Information | PDU Type | Switched |
| Plug / Connector Type | NEMA L6-30P |
| Plug / Connector Detail | 1 x NEMA L6-30P |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | Input Voltage | 230 V AC |
| Input Voltage Range | 208 V AC – 240 V AC |
| Output Voltage | 208 V AC, 240 V AC |
| Physical Characteristics | Mount Type | Rack-mountable |
| Rack Height | 2U |
| Height | 3.5″ |
| Width | 17.5″ |
| Depth | 12.5″ |
| Miscellaneous | Package Contents | PDUMH30HVNET PDU Switched 208V – 240V 30A 16 Outlet Rackmount PDU 4 post compatible mounting brackets |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
