Eaton Tripp Lite PDU Switched 120V 30A 24 5-15/20R L5-30P LX Interface 0URM TAA

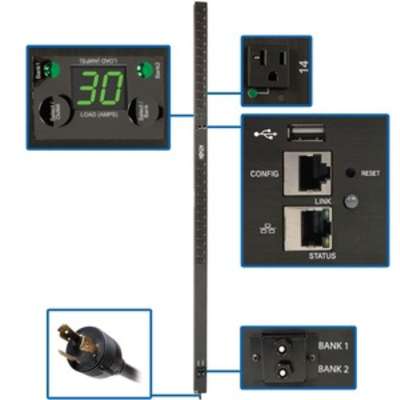

  • 2.9kW 120V single-phase switched 70-inch 0U PDU

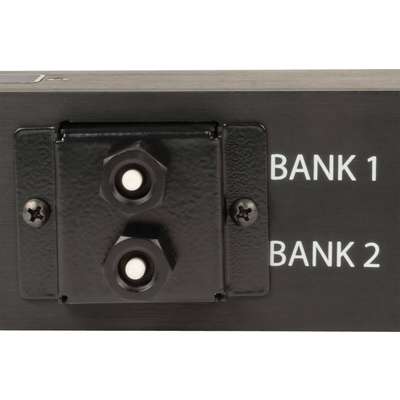

  • 24 controllable NEMA 5-15/20R outlets in 2 load banks
  • Built-in Java-free LX Platform interface for 24/7 remote access
  • Digital ammeter for on-site load monitoring in real time
  • NEMA L5-30P input with 10 ft. AC power cord

AED13,199.00

The PDUMVR30NETLX 2.9kW Single-Phase Switched PDU with individual outlet metering provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.
The switched PDU features 24 individually controllable NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot power cord with NEMA L5-30P plug connects the PDU to an AC source, generator or protected UPS.

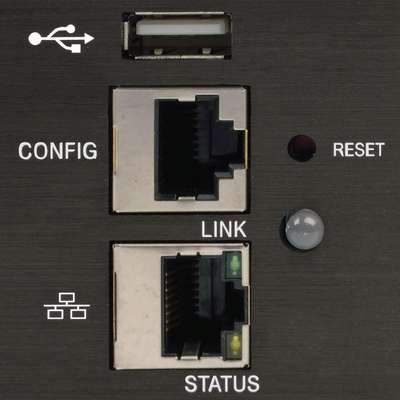

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

SKU: PDUMVR30NETLX Category: Tag:

General Information

Attribute Details
Product Name Tripp Lite PDU Switched 120V 30A 24 5-15/20R L5-30P LX Interface 0URM TAA
Product Model PDUMVR30NETLX
Product Type PDU

Technical Information

Attribute Details
PDU Type Switched
Phase Single Phase
Plug / Connector Type NEMA L5-30P
Receptacle Type NEMA 5-15/20R
Receptacle Detail 24 x NEMA 5-15/20R
Protection Type Overload Protection

Power Description

Attribute Details
Input Voltage 120 V AC
Output Voltage Range 100 V AC – 127 V AC
Power Rating (Watt) 3050 W
Input Current 30 A

Physical Characteristics

Attribute Details
Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 0U
Height 70″
Width 2.2″
Depth 2″

Miscellaneous

Attribute Details
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
