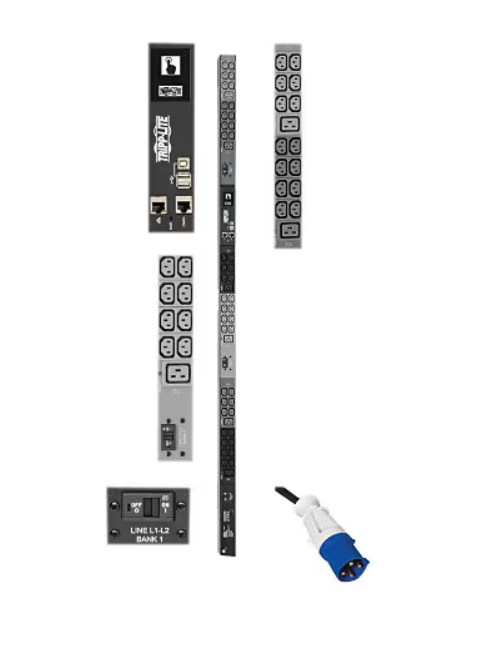

Eaton Tripp Lite Series 14.5kW 3-Phase Monitored PDU, LX Interface, 200/208/240V Outlets (42 C13/6 C19), LCD, IEC 309

Add to Wishlist

Quick tech specs

  • Phase Monitored PDU, LX Interface, 200/208/240V Outlets (42 C13/6 C19), LCD, IEC 309 60A Blue, 3m/10 ft. Cord, 0U 1.8m/70in. Height, TAA
  • 35 A
  • 14.5 kW
  • Ethernet 10/100, USB, serial
  • output connectors: 48 (power IEC 60320 C13, IEC 60320 C19)
  • 10 ft cord
  • Power distribution unit (rack-mountable)
  • AC 200/208/240 V
  • 3-phase
  • input: IEC 60309 60A
  • 0U
  • TAA Compliant

AED13,199.00

Add to Wishlist

Know your gear

The PDU3EVN10G60B 14.5kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. These advanced remote capabilities can save you money and reduce downtime.
Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with IEC 309 60A Blue (3P+E) input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The  Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
SKU: PDU3EVN10G60B Category: Tag:
Overview
Attribute
Details
Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model 14.5kW 3-Phase Monitored PDU, LX Interface, 200/208/240V Outlets (42 C13/6 C19), LCD, IEC 309 60A Blue, 3m/10 ft. Cord, 0U 1.8m/70in. Height, TAA
Manufacturer Tripp Lite
Network & Communication
Attribute Details
Remote Management HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, Serial, USB
Connectivity
Attribute Details
Input Connectors 1
Interface Provided 1 x management (Fast Ethernet) – RJ-45, 1 x serial – RJ-45, 1 x USB – Type B, 2 x USB – Type A
Power
Attribute Details
Emergency Power Off Amp meter, Current meter, Email alerts support, Firmware upgradable, LCD display
Frequency Provided 50/60 Hz
Input Connector Type Power IEC 60309 60A
Input Wiring 3-phase
Max Input Current 35 A
Output Connector Quantity 48
Output Connector Type Power IEC 60320 C13, Power IEC 60320 C19
Power Output Connectors Details 42 x IEC 60320 C13, 6 x IEC 60320 C19
Power Provided 14.5 kW (not kilograms per millimetre — likely a typo)
Provided Voltage AC 200/208/240 V
Required Voltage AC 200/208/240 V
Technical Information
Attribute Details
Form Factor Rack-mountable
Max Operating Temperature 122°F
Min Operating Temperature 32°F
Operating Humidity 5 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information
Attribute Details
Cord Length 10 ft
Features Vertical orientation
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Attribute Details
Cables Power cable – external – 10 ft
Included Accessories 48 plug-lock insert sleeves
Dimensions & Weight
Attribute Details
Height 70 in
Height (Rack Units) 0
Weight 18.65 lbs
Width 2.2 in
Depth 2.5 in
Physical Characteristics
Attribute Details
Color Category Black, Gray
