Eaton Tripp Lite Series 14.5kW 3-Phase Switched PDU, LX Interface, 200/208/240V Outlets (24 C13/6 C19), LCD, Hubbell

Add to Wishlist

Quick tech specs

  • Phase Switched PDU, LX Interface, 200/208/240V Outlets (24 C13/6 C19), LCD, Hubbell CS8365C, 1.8m/6 ft. Cord, 0U 1.8m/70 in. Height, TAA
  • 35 A
  • 14.5 kW
  • Ethernet 10/100, USB, serial
  • output connectors: 30 (power IEC 60320 C13, IEC 60320 C19)
  • 6 ft cord
  • Power distribution unit (rack-mountable)
  • AC 200/208/240 V
  • 3-phase
  • input: Hubbell CS8365C
  • 0U
  • TAA Compliant

AED14,799.00

Add to Wishlist

Know your gear

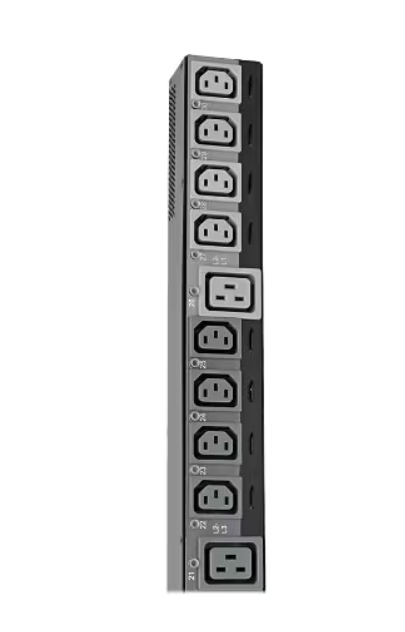

The PDU3EVSR6H50 14.5kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 30 switched outlets (24 C13 and 6 C19) with
included plug-lock insert sleeves to prevent cables from becoming accidentally

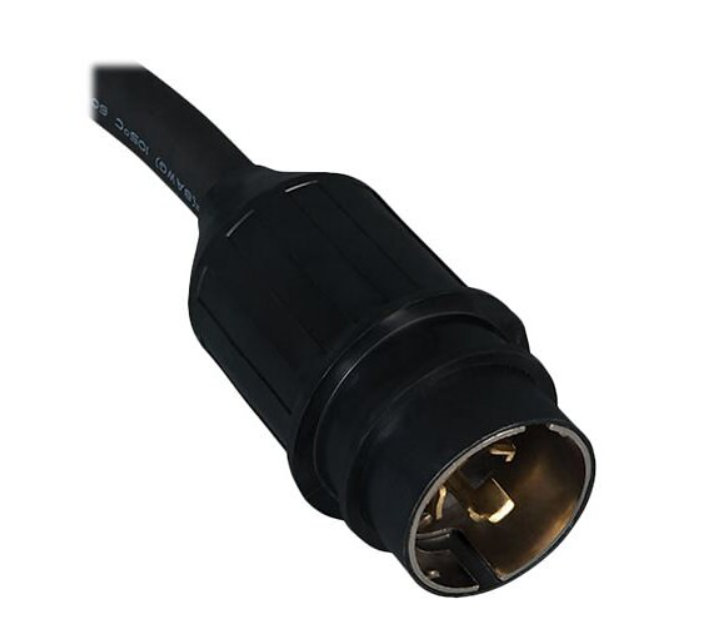

disconnected. A six-foot cord with Hubbell CS8365C plug connects the PDU to a compatible AC power source, generator or protected UPS.
The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

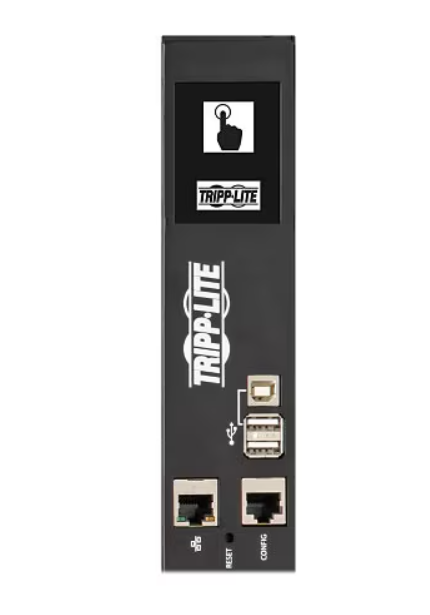

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
SKU: PDU3EVSR6H50 Category: Tag:
Category Attribute Value
Overview Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model 14.5kW 3-Phase Switched PDU, LX Interface, 200/208/240V Outlets (24 C13/6 C19), LCD, Hubbell CS8365C, 1.8m/6 ft. Cord, 0U 1.8m/70 in. Height, TAA
Manufacturer Tripp Lite
Network & Communication Remote Management HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet
Remote Management Interface Ethernet 10/100, Serial, USB
Connectivity Input Connectors 1
Interface Provided 1 x management (Fast Ethernet) – RJ-45, 1 x serial – RJ-45, 1 x USB – 4 pin USB Type B, 2 x USB – 4 pin USB Type A
Power Emergency Power Off Amp meter, Current meter, Email alerts support, Firmware upgradable, LCD display
Frequency Provided 50/60 hertz
Input Connector Type Hubbell CS8365C
Input Wiring 3-phase
Max Input Current 35 ampere
Output Connector Quantity 30
Output Connector Type Power IEC 60320 C13, Power IEC 60320 C19
Power Output Connectors Details 24 x power IEC 60320 C13, 6 x power IEC 60320 C19
Power Provided 14.5 kilograms per millimetere
Provided Voltage AC 200/208/240 volt
Required Voltage AC 200/208/240 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 122 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information Cord Length 6 ft
Features Vertical orientation
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Power cable – external – 6 ft
Included Accessories 30 plug-lock insert sleeves
Dimensions & Weight Height 70 inch
Height (Rack Units) 0
Weight 20 lbs
Width 2.2 inch
Depth 2.9 inch
Physical Characteristics Color Category Black, Gray
