Power distribution unit
Eaton Tripp Lite Series 2.9kW 1-Phase Local Metered PDU with ISOBAR Surge 120V 1U RM
- Ideal metered PDU for telecom

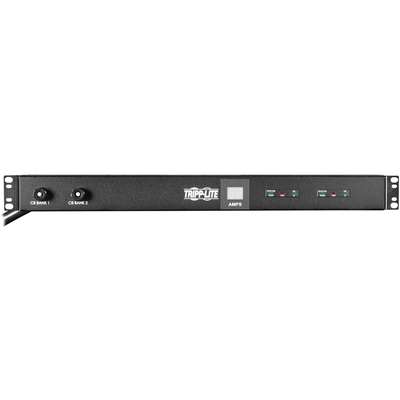

- Digital ammeter for on-site load monitoring helps prevent power overloads
- 3840 joules protect your valuable electronics against dangerous surges and spikes

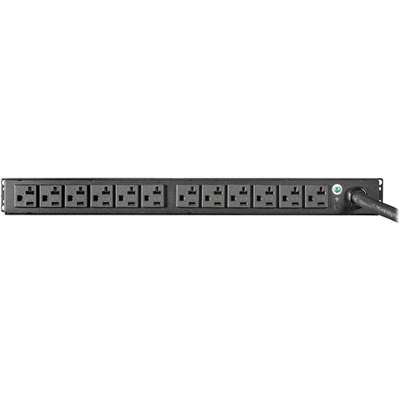

- 12 NEMA 5-15/20R outlets distribute AC power to connected equipment
- Flexible installation options include 1U and 0U rack
AED3,599.00

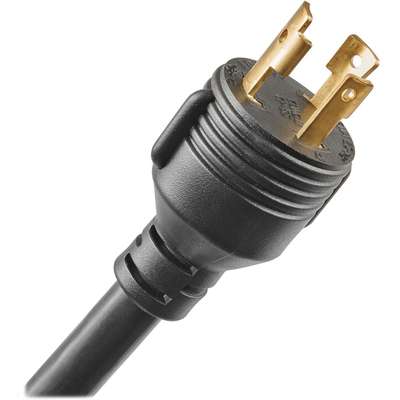

This local metered PDU is an ideal unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUMH30-ISO provides real-time monitoring of load levels via its built-in digital current metering. A 15- foot (4.6-meter) cord with L5-30P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.
General Information
| Attribute | Details |
|---|---|
| Product Name | Tripp Lite Series 2.9kW 1-Phase Local Metered PDU with ISOBAR Surge 120V 1U RM |
| Product Model | PDUMH30-ISO |
| Product Type | PDU |
Technical Information
| Attribute | Details |
|---|---|
| PDU Type | Metered |
| Phase | Single Phase |
| Plug / Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 12 x NEMA 5-15/20R |
| Protection Type | Surge Protection, Overload Protection |
Power Description
| Attribute | Details |
|---|---|
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 2900 W |
| Input Current | 30 A |
Physical Characteristics
| Attribute | Details |
|---|---|
| Color Family | Black |
| Product Color | Black |
| Mounting Orientation | Horizontal / Vertical |
| Mount Type | Wall-mountable |
| Form Factor | Rack |
| Rack Height | 0U / 1U |
| Height | 18.9″ |
| Width | 4.8″ |
| Depth | 1.7″ |
