EATON Tripp Lite Series 2400W Power Inverter/Charger, 24VDC, Auto-Transfer Switching

Add to Wishlist
  • Functions as an extended run UPS system, standalone power source and automotive inverter
  • Includes hardwire AC input and auto-transfer to enable battery charging and automatic UPS support for blackouts and brownouts
  • 2400 watts continuous output power; provides up to twice this rating for momentary startup of inductive loads
  • Battery runtime is dependent upon the size and number of user-supplied batteries in 24V configuration
  • Hardwire input and output connections supported, DC input terminals for 24V battery connection
  • Converts 24V DC to 120V AC
  • Frequency control for operating stability
  • Advanced 30 amp, 3-stage battery charger and selector switch for gel or wet cell batteries
  • Resettable circuit breaker protects APS against system overload
  • Switch allows user to select between off, auto-invert and charge-only settings
  • 6 diagnostic LEDs indicate AC present, on battery, overload, & battery voltage level (high, medium, & low)
  • Configuration switches to allow the user to select the high and low voltage for the unit to automatically transfer from AC power to battery backup
  • Coated internal circuit boards offer continuous operation in humid environments (0-95%, non condensing)
  • RJ45 port allows connection of APS remote switch (part# APSRM4)
  • Allows unlimited runtime capability by allowing the use any number of user-supplied batteries

AED13,199.00

Add to Wishlist

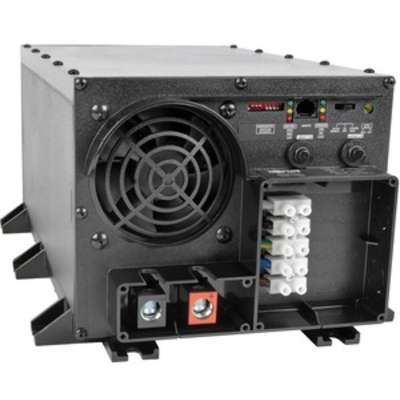

Tripp Lite’s APS2424 DC-to-AC inverter with automatic line-to-battery transfer and integrated charging system serves as an extended run UPS, a standalone power source or an automotive inverter. Supplies up to 2400 watts of continuous 120V AC power from any 24V battery or automotive DC source. OverPower inverter output feature temporarily provides up to 150% of the continuous output for 1-60 minutes, and DoubleBoost inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, 14/55 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Supports an unlimited amount of runtime with any number of user-supplied batteries.

SKU: APS2424 Category: Tag:
Category Details
General Information
Product Name Tripp Lite Series 2400W Power Inverter/Charger, 24VDC, Auto-Transfer Switching
Product Line PowerVerter
Product Series APS
Product Model APS2424
Product Type Power Inverter
Technical Information
Plug / Connector Type Hardwired
Receptacles Hardwired
Power Description
Input Voltage 24 V DC
Output Voltage 120 V AC
Maximum Frequency 60 Hz
Peak Power Load 4800 W
Continuous Power Load 2400 W
Waveform Type Pulse-width Modulated Sine Wave
Physical Characteristics
Height 7.3″
Width 8.5″
Depth 16.3″
Miscellaneous
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Other Information
Product Color Black
Color Family Black
