04 3550600 052 7036860

Eaton Tripp Lite Series 8.6kW 208/120V Three-Phase Basic PDU – 48 Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P Input, 6

Add to Wishlist

Quick tech specs

  • 3 phase PDU delivers 208/120V AC power to multiple loads from a utility outlet/generator or UPS system in a data center or network closet

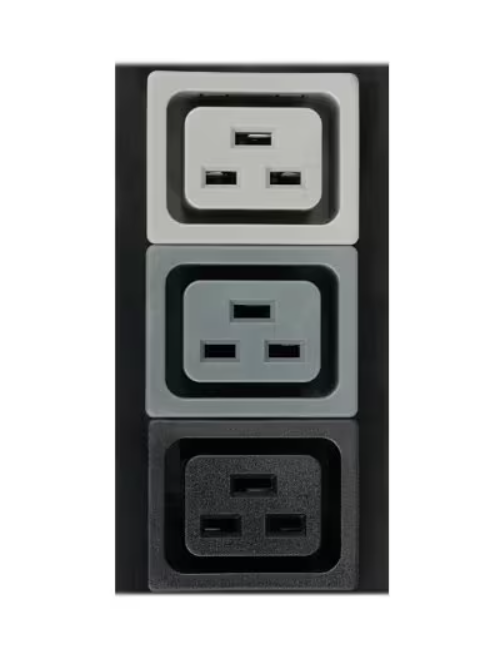

  • 36 C13/ 6 C19 and 6 5-15/20R outlets distribute AC power to connected equipment
  • 6ft power cord w/ NEMA L21-30P input connects to compatible AC source
  • Tripp Lite is now part of Eaton
  • Ideal PDU for telecom/security/ audio/video and network applications
  • Switchless design helps prevent accidental shutdowns that can lead to downtime
  • TAA Compliant

AED6,499.00

Add to Wishlist

Know your gear

Three-Phase 208/120V PDU Distributes Network-Grade Power to Multiple Loads

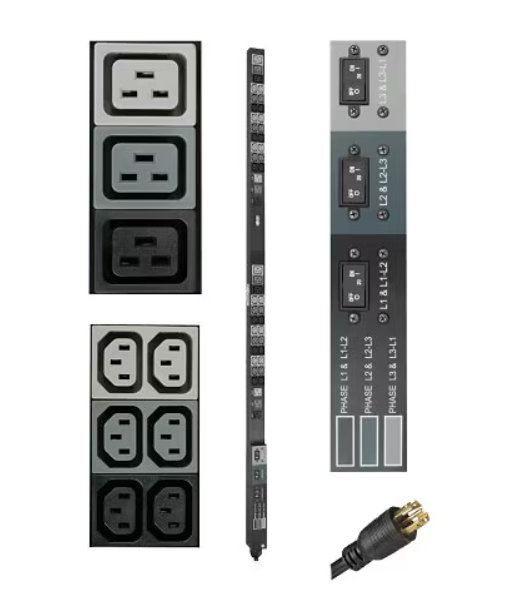

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2130 features 36 C13 (208V), six C19 (208V) and six NEMA 5-15/20R (120V) outlets in three breakered load banks for connecting equipment. A six-foot cord with L21-30P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. Three 20A circuit breakers, one per output phase, protect connected components from dangerous overloads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack

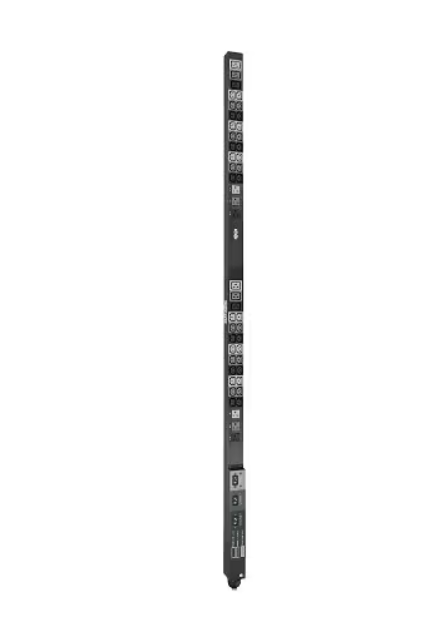

The 70-inch 0U rack PDU (rPDU) all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter.
SKU: PDU3V6L2130 Category: Tag:
Category Attribute Value
Overview Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model 8.6kW 208/120V Three-Phase Basic PDU – 48 Outlets (36 C13, 6 C19, 6 5-15/20R), L21-30P Input, 6 ft. Cord, 70 in. 0U Rack
Manufacturer Tripp Lite
Connectivity Input Connectors 1
Power Emergency Power Off Vertical orientation
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L21-30R
Input Wiring 3-phase
Max Input Current 30 ampere
Output Connector Quantity 48
Output Connector Type Power IEC 60320 C13, Power IEC 60320 C19, Power NEMA 5-15/20R
Power Output Connectors Details 36 x power IEC 60320 C13 – 208 V 12 A, 6 x power IEC 60320 C19 – 208 V 12 A, 6 x power NEMA 5-15/20R – 120 V 16 A
Power Provided 8.6 kilograms per millimetere
Provided Voltage AC 208 volt
Required Voltage AC 120/208 volt
Technical Information Form Factor (Power Device) Rack-mountable
Max Operating Temperature 122 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 5 – 95% (non-condensing)
Protection Type Circuit breaker
Product Information Cord Length 6 ft
Features Metal housing
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Power cable 6 ft
Included Accessories Cable retention brackets
Dimensions & Weight Height 70 inch
Height (Rack Units) 0
Weight 13.89 lbs
Width 1.7 inch
Depth 2.2 inch
Physical Characteristics Color Category Black
