This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2120LV features 42 NEMA 5-15/20R outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with NEMA L21-20P 3-phase input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.
Power distribution unit
Eaton Tripp Lite Series PDU 3-Ph Basic 120V 5.7kW 42 5-15/20R 208V L21-20P 70 inch 0URM
- High Power Capacity – Supports up to 5.7 kW of power distribution
- Simple Design – Basic yet effective for straightforward power needs
- Cost-Effective – Provides a budget-friendly option for power distribution
- Multiple Outlets – Includes 42 outlets for various devices.
AED4,799.00
General Information
| Attribute | Details |
|---|---|
| Product Name | Tripp Lite Series PDU 3-Ph Basic 120V 5.7kW 42 5-15/20R 208V L21-20P 70 inch 0URM |
| Product Model | PDU3V6L2120LV |
| Product Type | PDU |
Technical Information
| Attribute | Details |
|---|---|
| PDU Type | Basic |
| Phase | Three Phase |
| Plug / Connector Type | NEMA L21-20P |

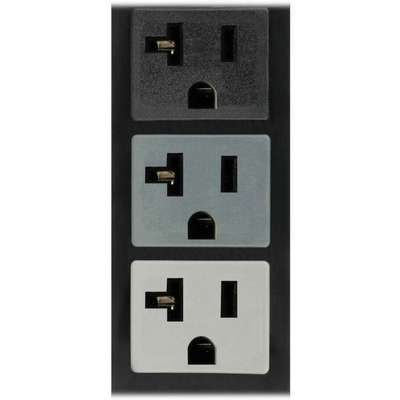

| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 42 x NEMA 5-15/20R |
| Protection Type | Accidental Power Shutdown, Overload Protection, Circuit Protection |
| Locking Receptacles | Cord Retention Bracket |
Power Description
| Attribute | Details |
|---|---|
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC |
| Power Rating (Watt) | 5700 W |
| Input Current | 16 A |
Physical Characteristics
| Attribute | Details |
|---|---|
| Mounting Orientation | Vertical / Toolless |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70″ |
| Width | 2.2″ |
| Depth | 1.7″ |
