Eaton Tripp Lite Series PDU 3-Phase Metered 120V 5.7 kW 42 5-15/20R L21-20P 0URM

Add to Wishlist

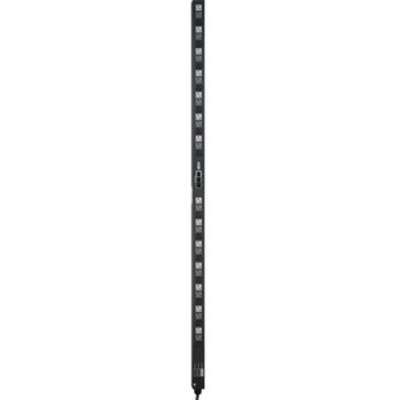

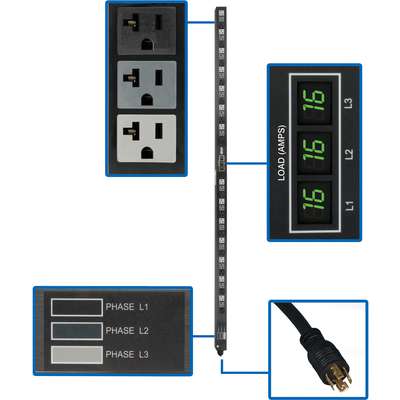

  • Metered 5.7kW 3 Phase 120V output PDU; 70 in. / 178cm 0U vertical rackmount

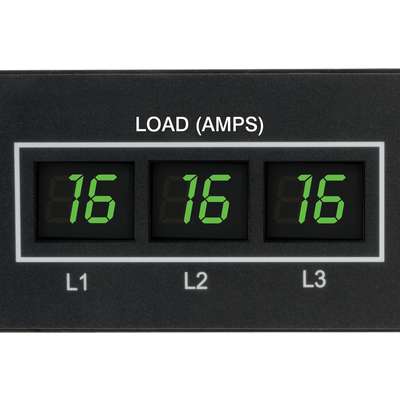

  • Reports load level per-phase via built in current meters
  • NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord
  • 42 NEMA 5-15/20R outlets (120V)
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

AED5,699.00

Add to Wishlist

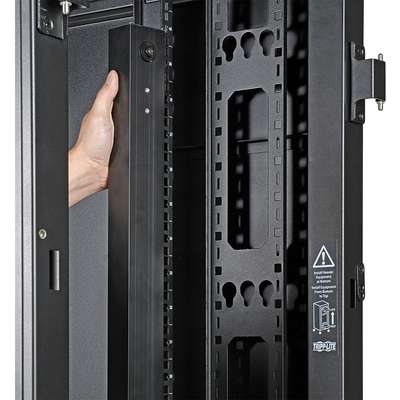

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

SKU: PDU3MV6L2120LV1 Category: Tag:
Category Attribute Details
General Information Product Name Tripp Lite Series PDU 3-Phase Metered 120V 5.7 kW 42 5-15/20R L21-20P 0URM
Product Series Metered
Product Model PDU3MV6L2120LV
Product Type PDU
Technical Information Plug / Connector Type NEMA L21-20P
Receptacle Type NEMA 5-15/20R
Receptacle Detail 42 x NEMA 5-15/20R
Power Description Input Voltage 230 V AC
Output Voltage 120 V AC
Power Rating (Watt) 5700 W
Physical Characteristics Mounting Orientation Vertical
Mount Type Rack-mountable
Height 70″
Width 1.9″
Depth 2.2″
Miscellaneous Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Other Information Product Family Metered
