04 3550600 052 7036860

Eaton Tripp Lite Series PDU 3-Phase Metered 208/120V 5.7 kW 21 5-15/20R; 6 L6-20R 0URM – vertical rackmount – power

Add to Wishlist

Quick tech specs

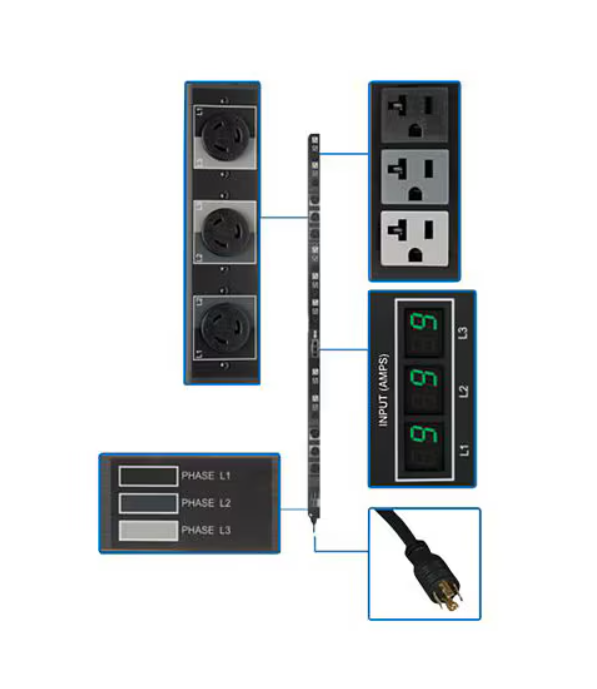

  • 3-Phase Metered Vertical Rackmount PDU with 6ft Power cord and 27 Outlets
  • Metered 5.7kW 3 Phase 208/120V PDU; 70 in./ 178cm 0U vertical rackmount
  • NEMA L21-20P (3P+N+E) 208V 3 phase input 6ft cord
  • Toolless button-mount installation
  • PDU/ Power Distribution Unit/ Vertical PDU/ PDU Strip/ Metered PDU/ rack pdu/ pdus/ datacenter pdu/ network pdu
  • 27 outlets total 21 5-15/20R (120V) and 6 L6-20R (208V)
  • TAA Compliant

AED5,299.00

Add to Wishlist

Know your gear

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
SKU: PDU3MV6L2120B Category: Tag:
Overview
Attribute Details
Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model PDU 3-Phase Metered 208/120V 5.7 kW 21 5-15/20R; 6 L6-20R 0URM
Edition Vertical rackmount
Manufacturer Tripp Lite
Connectivity
Attribute Details
Input Connectors 1
Power
Attribute Details
Emergency Power Off Current meter, Vertical orientation
Frequency Provided 60 Hz
Input Connector Type Power NEMA L21-20
Input Wiring 3-phase
Output Connector Quantity 27
Power Output Connectors 21 x NEMA 5-15/20
6 x NEMA L6-20
Power Provided 5.7 kilograms per millimetre (Note: unit likely incorrect—please verify)
Provided Voltage AC 120/208 V
Required Voltage AC 208 V
Technical Information
Attribute Details
Form Factor Rack-mountable
Operating Humidity 0 – 95% (non-condensing)
Product Information
Attribute Details
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Attribute Details
Cables Power cable – 6 ft
Included Accessories Cable retention brackets
Dimensions & Weight
Attribute Details
Height 70 in
Height (Rack Units) 0
Weight 12.57 lbs
Width 1.9 in
Depth 2.2 in
