Power distribution unit
EATON Tripp Lite Series PDU 3-Phase Metered 208/120V 5.7 Kw 36 C13 6 C19 6 5-15/20R 0U

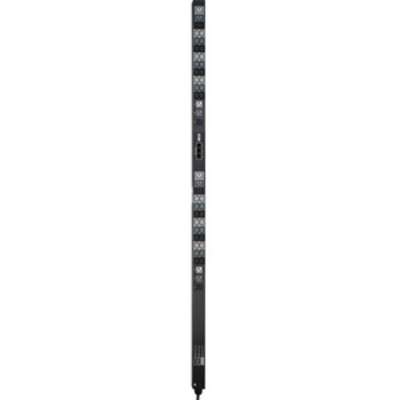

- Metered 5.7kW 3 Phase 208/120V PDU; 70 in. / 178cm 0U vertical rackmount

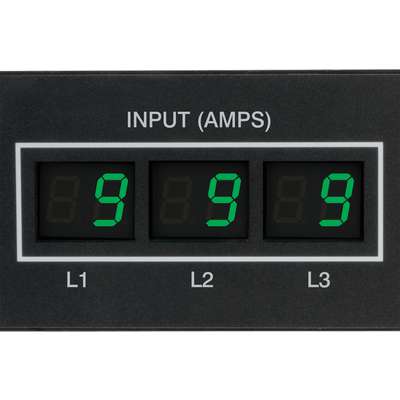

- Reports input current per-phase via built in current meters
- NEMA L21-20P (3P+N+E) 208V 3 phase input; 6 ft. / 1.8m line cord

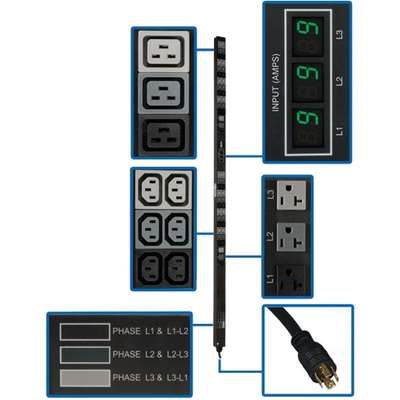

- 48 outlets total; 36 C13 (208V), 6 C19 (208V) & 6 NEMA 5-15/20R (120V)

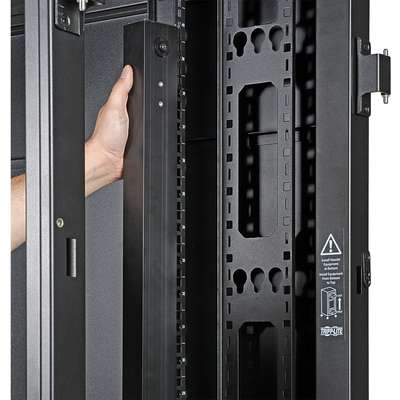

- Toolless button-mount installation; cord retention brackets included
- TAA Compliant
AED5,499.00
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Category | Attribute | Value |
|---|
| General Information | Product Name | Tripp Lite Series PDU 3-Phase Metered 208/120V 5.7 Kw 36 C13 6 C19 6 5-15/20R 0U |
| Product Series | Metered |
| Product Model | PDU3MV6L2120 |
| Product Type | PDU |
| Technical Information | Plug / Connector Type | NEMA L21-20P |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19, NEMA 5-15/20R |
| Receptacle Detail | 36 x IEC 60320 C13, 6 x IEC 60320 C19, 6 x NEMA 5-15/20R |
| Power Description | Input Voltage | 230 V AC |
| Output Voltage | 120 V AC, 208 V AC |
| Power Rating (Watt) | 5700 W |
| Physical Characteristics | Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Height | 70″ |
| Width | 1.9″ |
| Depth | 2.2″ |
| Miscellaneous | Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | Product Family | Metered |
