04 3550600 052 7036860

Eaton Tripp Lite Series PDU 3-Phase Metered 208V 12.6 kW Hubbell 36 C13; 6 C19 0URM

Add to Wishlist
  • Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount

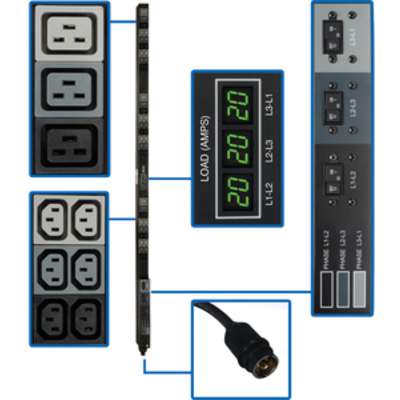

  • Reports load current per-phase via set of 3 built-in current meters

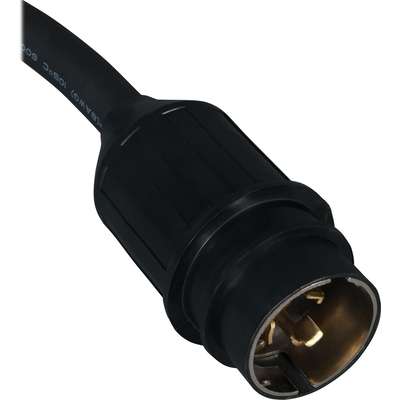

  • Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord
  • 45 208V outlets total (36 C13

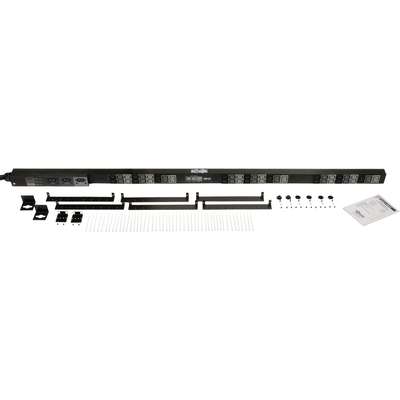

  • Toolless button-mount installation; cord retention brackets included
  • Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases

AED9,099.00

Add to Wishlist

Tripp Lite 3-phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

SKU: PDU3MV6H501 Category: Tag:

General Information

Attribute Details
Product Name Tripp Lite Series PDU 3-Phase Metered 208V 12.6 kW Hubbell 36 C13; 6 C19 0URM
Product Series Metered
Product Model PDU3MV6H50
Product Type PDU

Technical Information

Attribute Details
Plug / Connector Type Hubbell CS8365C
Receptacle Type IEC 60320 C13
IEC 60320 C19
Receptacle Detail 36 x IEC 60320 C13
9 x IEC 60320 C19
Protection Type Overload Protection

Power Description

Attribute Details
Input Voltage 230 V AC
Output Voltage 208 V AC
Power Rating 12.60 kW

Physical Characteristics

Attribute Details
Mounting Orientation Vertical
Mount Type Rack-mountable
Height 70″
Width 2.7″
Depth 2.2″
