Surge Protectors

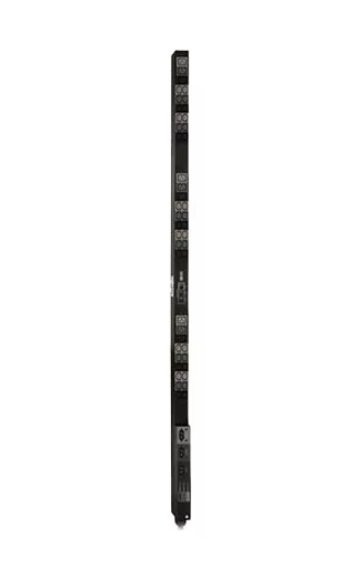

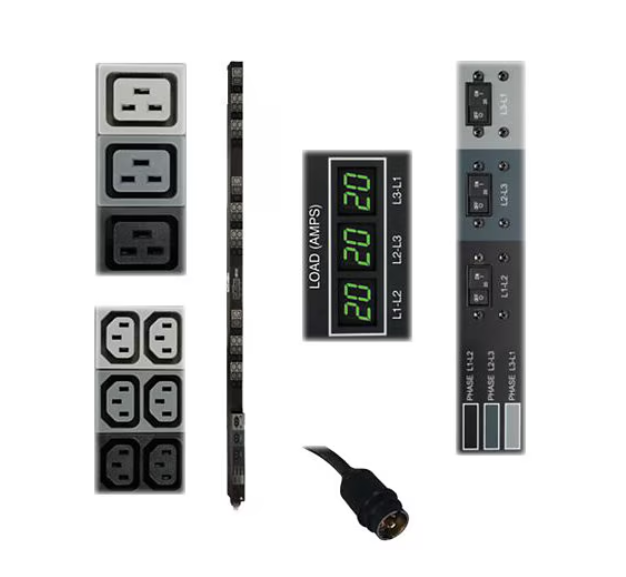

Eaton Tripp Lite Series PDU 3-Phase Metered 208V 12.6 kW Hubbell 36 C13 9 C19 TAA – vertical rackmount – power
Quick tech specs
- Phase Metered 208V 12.6 kW Hubbell 36 C13 9 C19 TAA
- power distribution unit (rack-mountable)
- 12.6 kW
- input: Hubbell CS8365C
- 0U
- Vertical rackmount
- AC 208 V
- 3-phase
- output connectors: 45
AED7,599.00
Know your gear

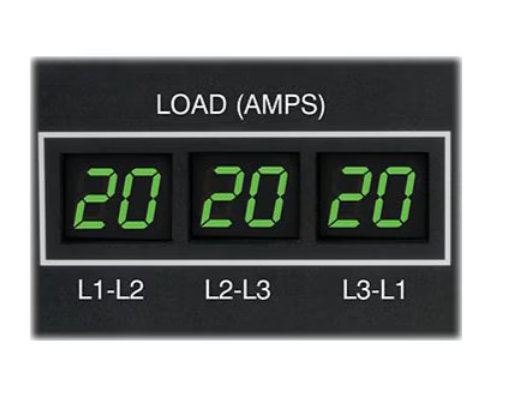

Tripp Lite 3 phase Metered PDU/Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. It offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessory.
| Category | Attribute | Value |
|---|
| Overview | Brand | Tripp Lite |
| Product Line | Eaton Tripp Lite Series |
| Model | PDU 3-Phase Metered 208V 12.6 kW Hubbell 36 C13 9 C19 TAA |
| Edition | Vertical rackmount |
| Manufacturer | Tripp Lite |
| Power | Emergency Power Off | Current meter, Overload protection |
| Frequency Provided | 60 hertz |

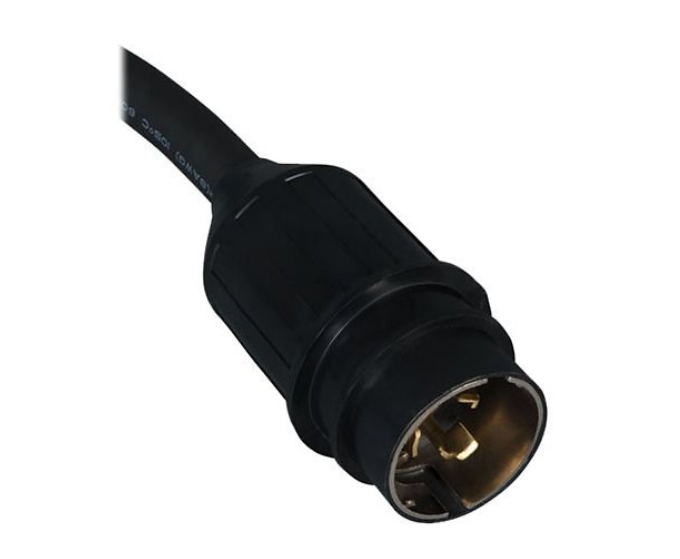

| Input Connector Type | Hubbell CS8365C |
| Input Wiring | 3-phase |
| Output Connector Quantity | 45 |

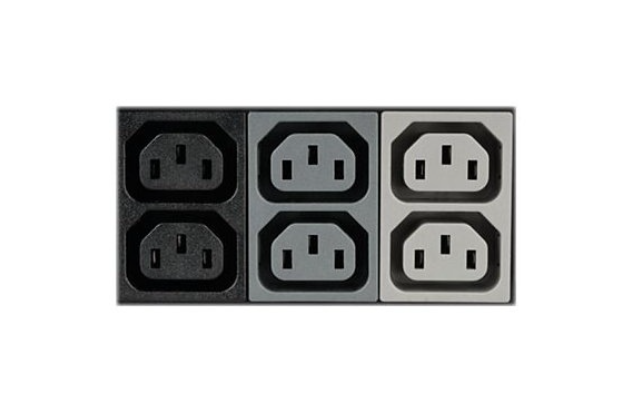

| Power Output Connectors Details | 36 x power IEC 60320 C13, 9 x power IEC 60320 C19 |
| Power Provided | 12.6 kilograms per millimeter (Likely an error in unit) |
| Provided Voltage | 208 volt |
| Required Voltage | AC 208 volt |
| Technical Information | Form Factor (Power Device) | Rack-mountable |
| Operating Humidity | 0 – 95% (non-condensing) |
| Product Information | Packaged Quantity | 1 |
| Product Type | Power distribution unit |
| Rack Mounting Kit | Included |
| Subcategory | Power distribution devices |
| Included Items | Cables | Power cable – external – 6 ft |

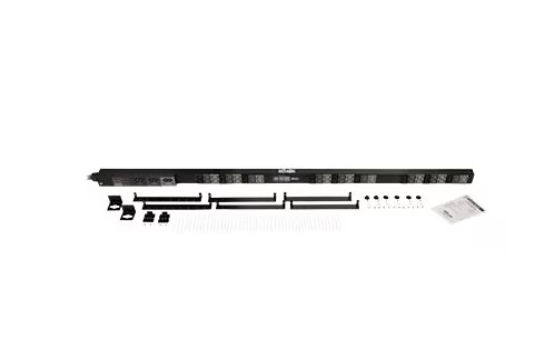

| Included Accessories | Cable retention brackets |
| Dimensions & Weight | Height | 70 inch |
| Height (Rack Units) | 0 |
| Weight | 14.55 lbs |
| Width | 2.6 inch |
| Depth | 2.2 inch |
Based on 0 reviews
Be the first to review “Eaton Tripp Lite Series PDU 3-Phase Metered 208V 12.6 kW Hubbell 36 C13 9 C19 TAA – vertical rackmount – power”
