Power distribution unit

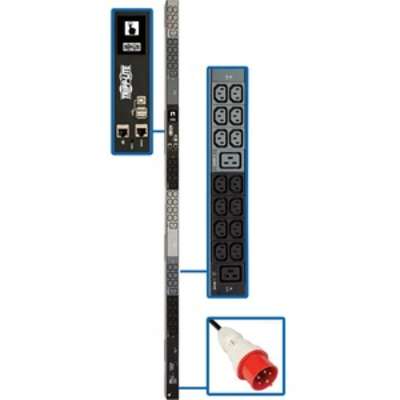

EATON Tripp Lite Series PDU 3-Phase Metered 220/230V 22.2kW 32A IEC309 36 C13 6 C19 0U
- Metered 22.2kW 3 Phase 380/400V input 220/230V output PDU

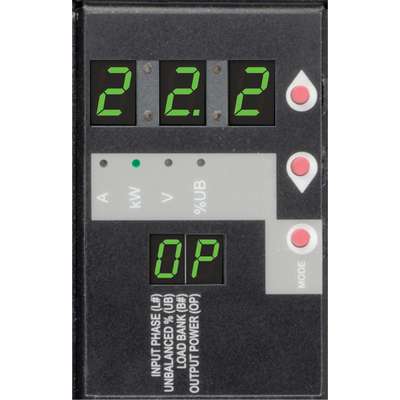

- Visual meter reports output amps per bank, total kW and input voltage
- IEC309 32A Red (3P+N+E) 3 phase 380/400V input, 6 ft. / 1.8m line cord

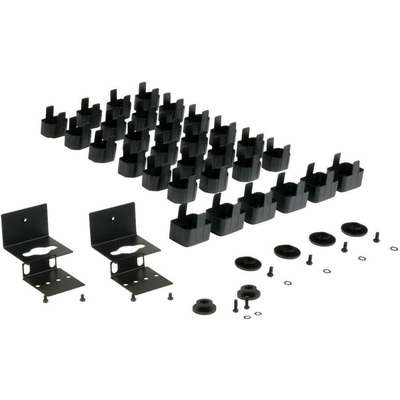

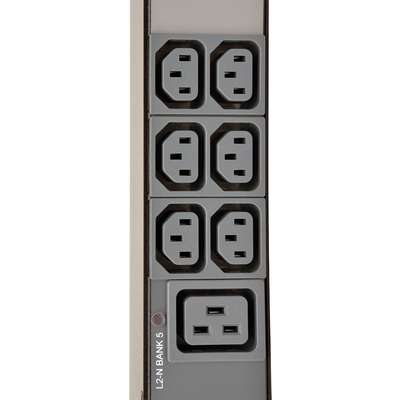

- 42 220/230V outlets (36 C13, 6 C19) with included plug-lock cord retention sleeves
- 0U Vertical Rackmount with Toolless button-mount installation
- TAA Compliant
AED9,199.00
Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of output current, output kW and input voltage via built-in multifunction digital display. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
| Category | Attribute | Value |
|---|
| General Information | Product Name | Tripp Lite Series PDU 3-Phase Metered 220/230V 22.2kW 32A IEC309 36 C13 6 C19 0U |
| Product Line | Metered |
| Product Model | PDU3XMV6G32 |
| Product Type | PDU |
| Technical Information | Plug / Connector Type | IEC 60309 32A Red 3P+N+E |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 |
| Receptacle Detail | 6 x IEC 60320 C19, 36 x IEC 60320 C13 |
| Protection Type | Overload Protection |
| Power Description | Input Voltage Range | 380 V AC – 400 V AC |
| Output Voltage | 200 V AC, 220 V AC, 230 V AC, 240 V AC |
| Power Rating (Watt) | 23 kW |
| Input Current | 32 A |
| Physical Characteristics | Mounting Orientation | Vertical |
| Mount Type | Rack-mountable |
| Rack Height | 0U |
| Height | 70″ |
| Width | 2.2″ |
| Depth | 2.5″ |
| Miscellaneous | Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Other Information | Product Family | Metered |

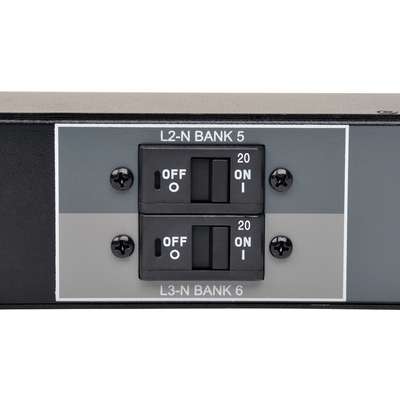

| Circuit Breaker | Yes |
