Eaton Tripp Lite Series PDU 3-Phase Metered 240V/230V/220V 11.5kW C13 C19 Vertical. 0URM

Add to Wishlist
  • Metered 11.5kW 3 Phase 415/240V

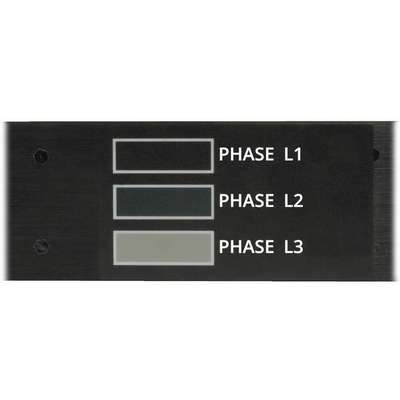

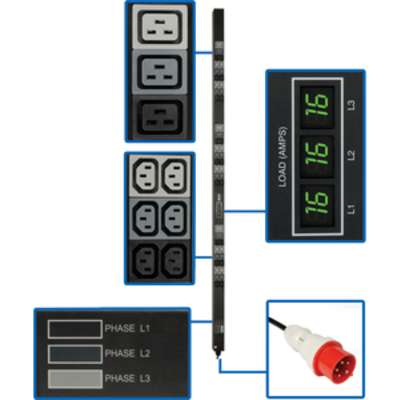

  • Set of 3 digital meters reports output load level per phase in amps

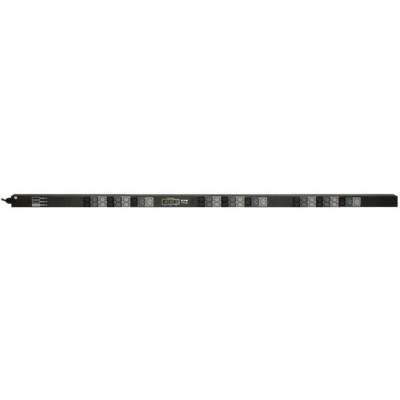

  • 70in / 1778mm 0U vertical format
  • IEC-309 Red 16/20A (3P+N+E) 3 phase input; 6ft 1.8m line cord

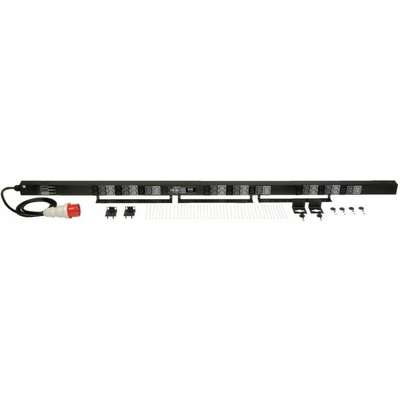

  • 36 C13 & 9 C19 single phase outlets; Included cord retention brackets

AED6,499.00

Add to Wishlist

Tripp Lite 3-phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

SKU: PDU3XMV6G20 Category: Tag:
Category Attribute Details
General Information Product Name Tripp Lite series PDU 3-Phase Metered 240V/230V/220V 11.5kW C13 C19 Vert. 0URM
Product Series Metered
Product Model PDU3XMV6G20
Product Type PDU
Technical Information Plug / Connector Type IEC 60309 16A
Receptacle Type IEC 60320 C19, IEC 60320 C13
Receptacle Detail 9 x IEC 60320 C19, 36 x IEC 60320 C13
Power Description Input Voltage Range 380 V AC – 415 V AC
Output Voltage 220 V AC, 230 V AC, 240 V AC
Power Rating (VA) 11,500 VA
Physical Characteristics Mounting Orientation Vertical
Mount Type Rack-mountable
Height 70″
Width 2.2″
Depth 1.9″
