Power distribution unit

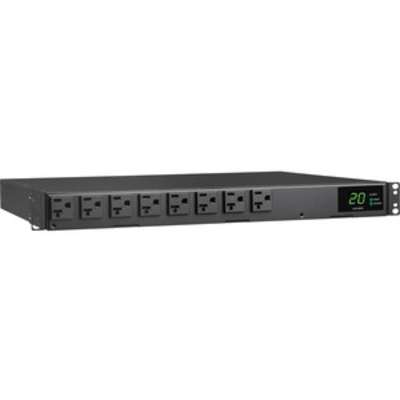

Eaton Tripp Lite Series PDU ATS / Metered 120V 1.92kW 20A 16 5-15/20R Dual L5-20P 1URM
- 16 NEMA 5-15/20R 120V outlets distribute AC power to connected equipment
- Digital ammeter for on-site real-time load monitoring helps prevent power overloads

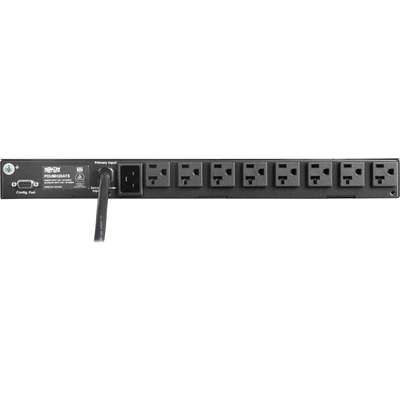

- Dual 12 ft. cords with NEMA L5-20P inputs connect to separate power sources

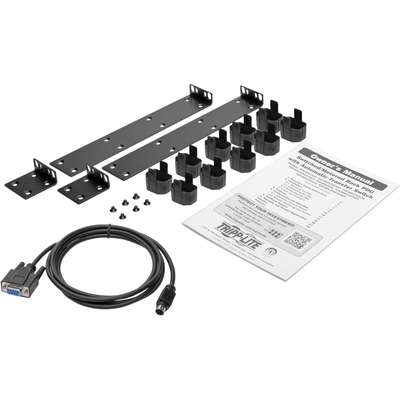

- Installs in 1U of space in EIA-standard 19 in. racks using included mounting brackets
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
AED5,199.00
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20ATS features 16 NEMA 5-15/20R 120V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with NEMA L5-20P inputs (two 5-20P adapters are included) connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
General Information
| Attribute | Details |
|---|---|
| Product Name | Tripp Lite Series PDU ATS / Metered 120V 1.92kW 20A 16 5-15/20R Dual L5-20P 1URM |
| Manufacturer Part Number | PDUMH20ATS |
| Product Type | PDU |
Technical Information
| Attribute | Details |
|---|---|
| PDU Type | Metered Auto Transfer Switch |
| Phase | Single Phase |
| Plug / Connector Type | NEMA 5-20P, NEMA L5-20P |
| Plug / Connector Detail | 2 x NEMA L5-20P, 2 x NEMA 5-20P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 16 x NEMA 5-15/20R |
| Protection Type | Circuit Protection |
Power Description
| Attribute | Details |
|---|---|
| Input Voltage | 120 V AC |
| Output Voltage | 100 V AC, 120 V AC, 127 V AC |
| Power Rating (Watt) | 2030 W |
| Input Current | 20 A |
Physical Characteristics
| Attribute | Details |
|---|---|
| Mounting Orientation | Horizontal |
| Mount Type | Rack-mountable, Wall-mountable |
| Rack Height | 1U |
| Height | 1.8″ |
| Width | 17.5″ |
| Depth | 14.5″ |
