Eaton Tripp Lite Series PDU ATS/Monitored 1.44kW 120V Single-Phase – 8 NEMA 5-15R Outlets, Dual 5-15P Inputs, 12 ft.

Add to Wishlist

Quick tech specs

  • ATS PDU allows real-time current metering/remote power monitoring to help prevent circuit overloads/ensure load balance
  • Switches from primary to secondary power source in <7ms
  • Dual 12ft cords w/ NEMA 5-15P inputs connect to separate power sources
  • Tripp Lite is now part of Eaton
  • Digital ammeter for on-site real-time load monitoring helps prevent overloads
  • TAA Compliant PDU/ power distribution unit

AED5,099.00

Add to Wishlist

Know your gear

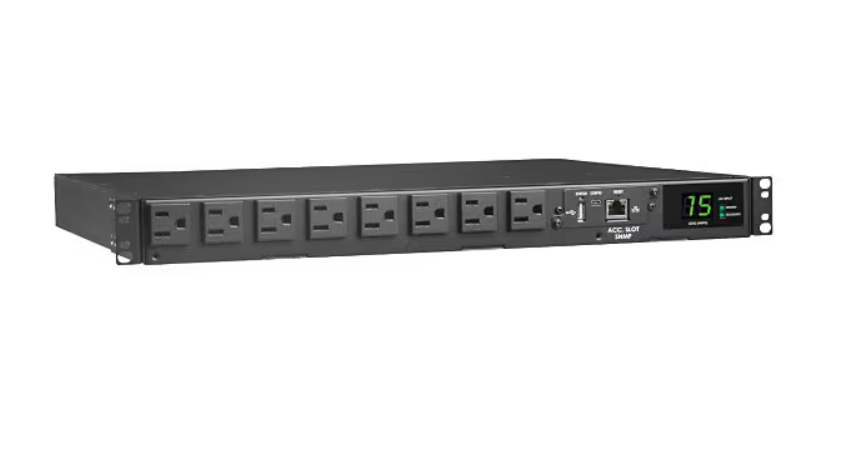

Single-Phase 15A ATS PDU Distributes and Monitors Network-Grade Power in Real Time

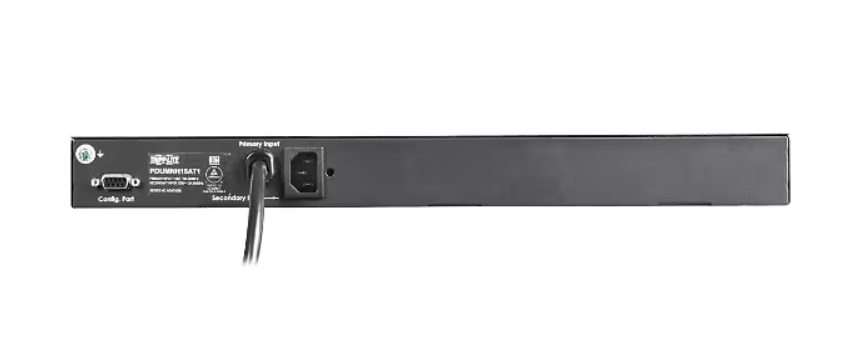

This monitored rack PDU (rPDU) provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH15AT1 features eight NEMA 5-15R 120V outlets, which distribute AC power to rack equipment. Dual 12-foot (3.7-meter) power cords with NEMA 5-15P inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2–7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
 LX Platform Network Management Card Allows Remote Access 24/7
The Java-free HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.

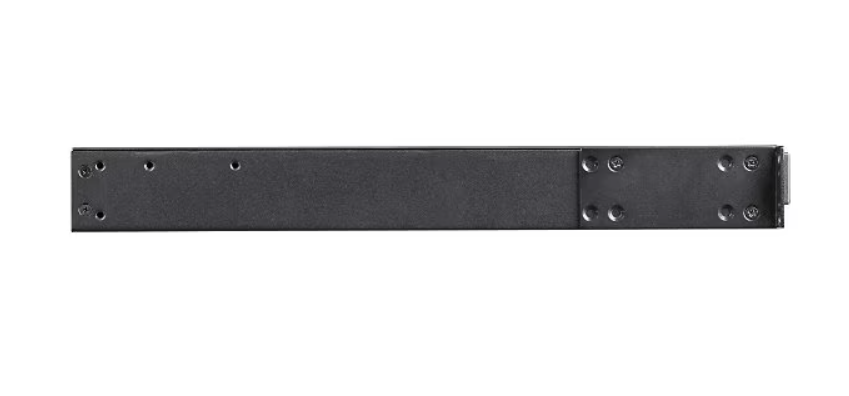

Mounts into 1U of Rack Space or on a Wall

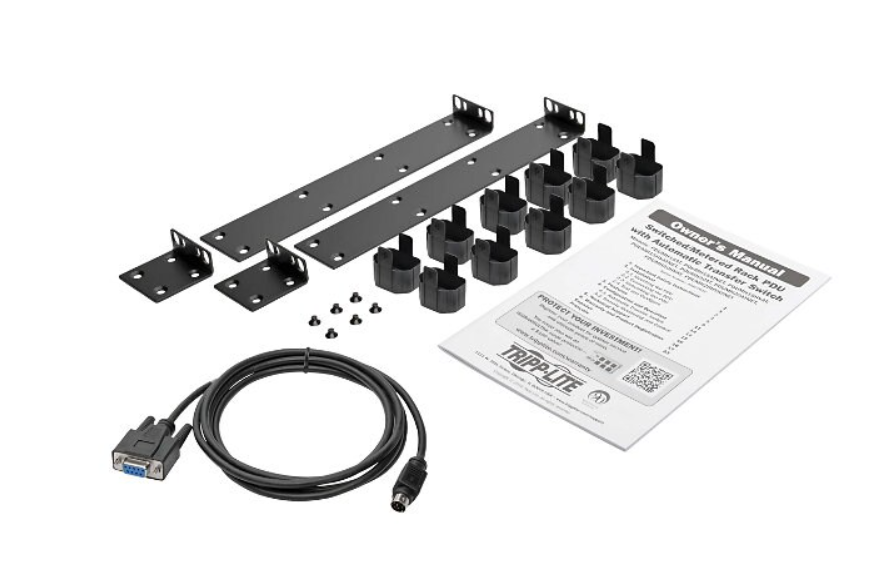

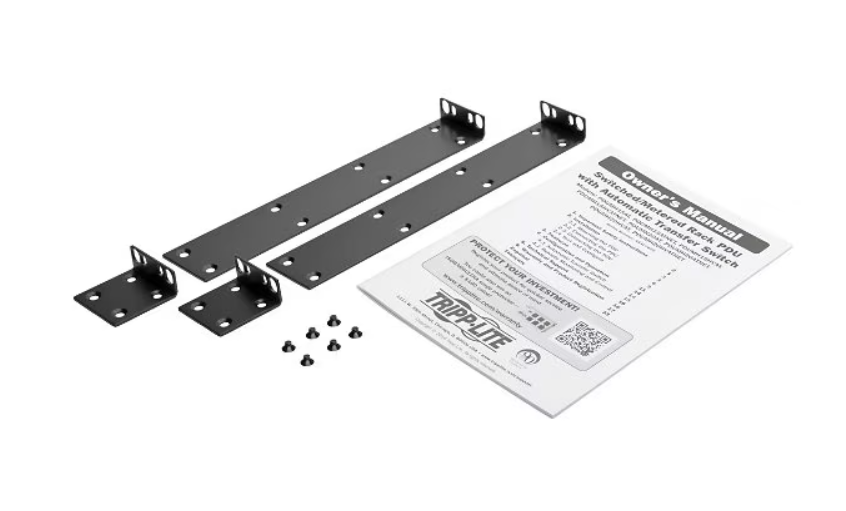

Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter.
TAA-Compliant for GSA Schedule Purchases
The PDUMNH15AT1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
SKU: PDUMNH15AT1 Category: Tag:
Category Attribute Value
Overview Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model PDU ATS/Monitored 1.44kW 120V Single-Phase – 8 NEMA 5-15R Outlets, Dual 5-15P Inputs, 12 ft. Cords, 1U, TAA
Manufacturer Tripp Lite
Network & Communication Remote Management SNMP
Connectivity Input Connectors 2
Power Emergency Power Off Automatic Transfer Switch (ATS), Current meter, LED display, Load monitoring, Overload protection
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA 5-15P
Input Wiring 1-phase
Max Input Current 15 ampere
Output Connector Quantity 8
Output Connector Type Power NEMA 5-15R
Power Output Connectors Details 8 x power NEMA 5-15R
Power Provided 1.44 kilograms per millimetere
Provided Voltage AC 100-127 volt
Required Voltage AC 100/120/127 volt
Technical Information Form Factor (Power Device) Rack-mountable
Operating Humidity 5 – 95% (non-condensing)
Product Information Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items Cables Console cable, Power cable (C13-NEMA 5-15P) – detachable – 12 ft, Power cable (NEMA 5-15P) – integrated – 12 ft
Included Accessories Cord retention kit
Dimensions & Weight Height 1.7 inch
Height (Rack Units) 1U
Weight 11 lbs
Width 17.5 inch
Depth 14.5 inch
Physical Characteristics Color Black
Color Category Black
