Eaton Tripp Lite Series PDU ATS/Monitored 1.92kW 120V Single-Phase – 16 5-15/20R Outlets, Dual L5-20P/5-20P Inputs, 12

Add to Wishlist

Quick tech specs

  • ATS PDU allows real-time current metering and remote power monitoring to help prevent circuit overloads/ensure proper load balance
  • Switches from primary to secondary power source in <7ms to maintain constant operation
  • Dual 12ft cords w/ NEMA L5-20P inputs
  • Tripp Lite is now part of Eaton
  • Digital ammeter for on-site load monitoring helps prevent overloads
  • TAA Compliant PDU / power distribution unit

AED5,499.00

Add to Wishlist

Know your gear

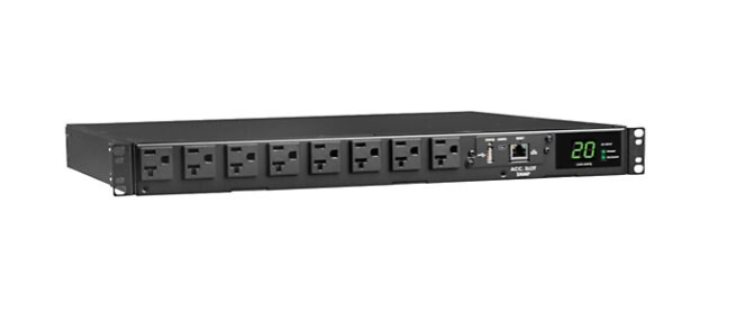

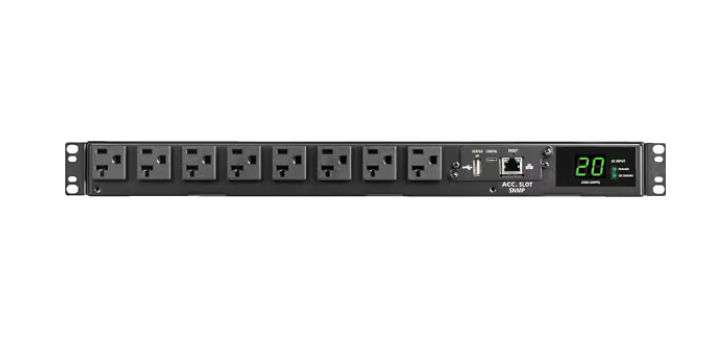

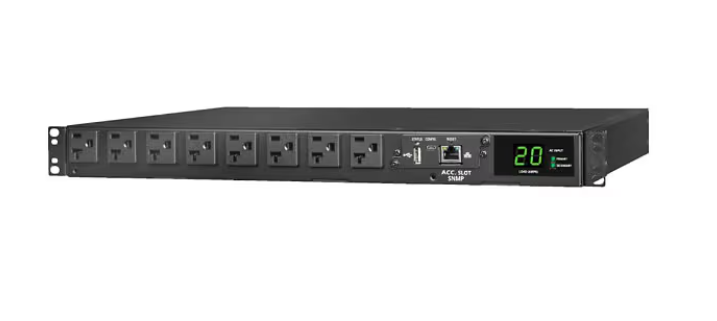

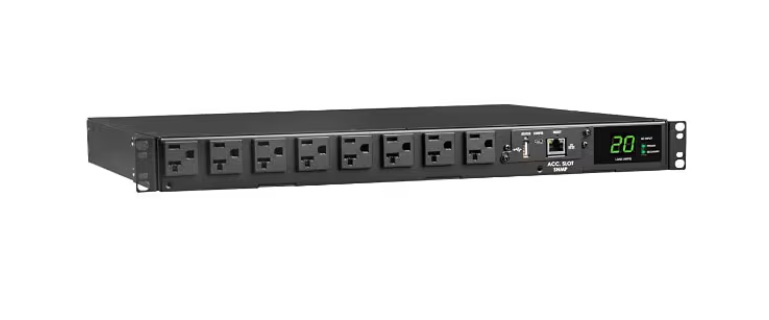

This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH20AT1 features 16 NEMA 5-15/20R 120V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with NEMA L5-20P inputs (two 5-20P adapters are included) connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2– 7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
The Java-free HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite’s PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter.
SKU: PDUMNH20AT1 Category: Tag:
Overview
Specification Details
Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model PDU ATS/Monitored 1.92kW 120V Single-Phase – 16 5-15/20R Outlets, Dual L5-20P/5-20P Inputs, 12 ft. Cords, 1U, TAA
Manufacturer Tripp Lite
Connectivity
Specification Details
Input Connectors 2
Power
Specification Details
Emergency Power Off Automatic Transfer Switch (ATS), Current meter, LED display, Load monitoring, Overload protection
Frequency Provided 50/60 hertz
Input Connector Type Power IEC 60320 C19, Power NEMA L5-20P
Input Wiring 1-phase
Max Input Current 20 ampere
Output Connector Quantity 16
Output Connector Type Power NEMA 5-15/20R
Power Output Connectors Details 16 x power NEMA 5-15/20R
Power Provided 2.03 kilograms per millimetere
Provided Voltage AC 100/120/127 volt
Required Voltage AC 120 volt
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Operating Humidity 5 – 95% (non-condensing)
Product Information
Specification Details
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Specification Details
Cables Console cable, Power cable (C19-NEMA L5-20P) – detachable – 12 ft, Power cable (NEMA L5-20P) – integrated – 12 ft
Included Accessories 2 x NEMA 5-20P plug adapters, Cord retention kit
Dimensions & Weight
Specification Details
Height 1.7 inch
Height (Rack Units) 1
Weight 12.19 lbs
Width 17.5 inch
Depth 14.5 inch
Physical Characteristics
Specification Details
Color Black
Color Category Black
