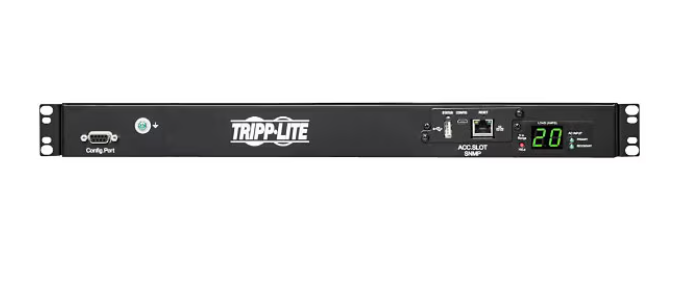

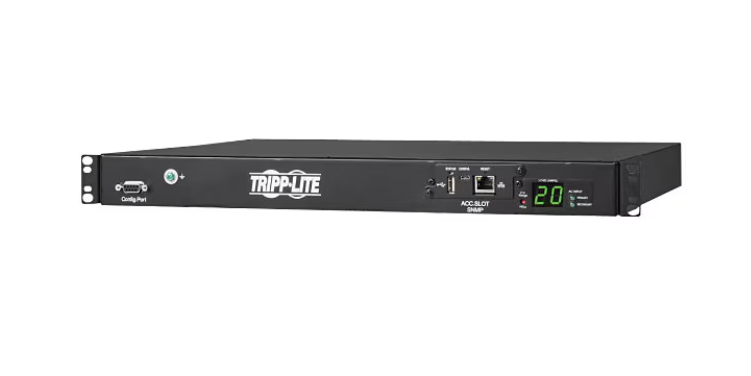

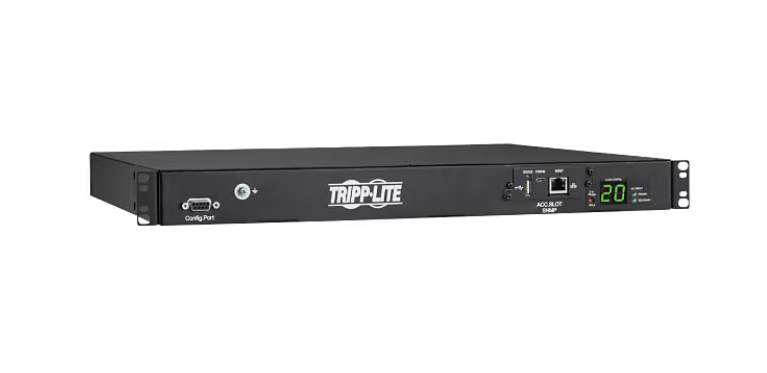

Eaton Tripp Lite Series PDU ATS/Monitored 3.8kW 200-240V Single-Phase – 8 C13 and 2 C19 Outlets, Dual C20 Inlets, 12 ft.

Add to Wishlist

Quick tech specs

  • TAA Compliant ATS PDU allows real-time current metering/remote power monitoring to help prevent circuit overloads and ensure proper load balance
  • Switches from primary to secondary power source in 7ms for constant operation
  • Includes WEBCARDLX w/ latest version of PADM20 for enhanced remote management
  • 8 C13 and 2 C19 200-240V outlets distribute AC power to equipment
  • Digital ammeter for on-site real-time load monitoring helps prevent power overloads
  • Tripp Lite is now part of Eaton

AED6,199.00

Add to Wishlist

Know your gear

Single-Phase 20A ATS PDU Distributes and Monitors Network-Grade Power in Real Time

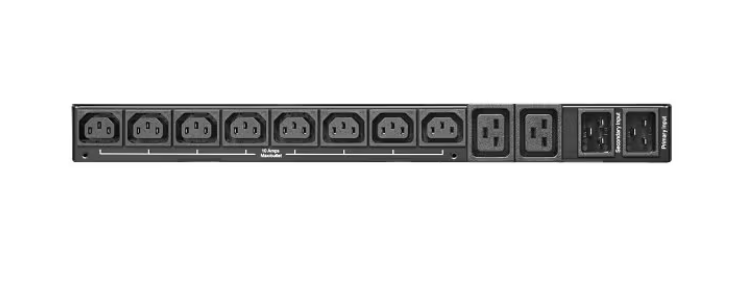

This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH20HVAT1 features eight C13 and two C19 200–240V outlets for connecting equipment. Dual 12-foot (3.7-meter) power cords with C20 inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 2–7 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Pre-Installed WEBCARDLX Network Interface Offers 24/7 Remote Access for Monitoring and Control
The HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite’s PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Mounts into 1U of Rack Space
Use the included mounting hardware to install the all-metal housing into 1U of space in an EIA-standard 19-inch rack.
TAA-Compliant for GSA Schedule Purchases
The PDUMNH20HVAT1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
SKU: PDUMNH20HVAT1 Category: Tag:
Overview
Specification Details
Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model PDU ATS/Monitored 3.8kW 200-240V Single-Phase – 8 C13 and 2 C19 Outlets, Dual C20 Inlets, 12 ft. Cords, Network Card, 1U, TAA
Manufacturer Tripp Lite
Connectivity
Specification Details
Input Connectors 2
Power
Specification Details
Emergency Power Off Automatic Transfer Switch (ATS),  LX platform interface, Current meter, LED display, Load monitoring, Overload protection
Frequency Provided 50/60 hertz
Input Connector Type Power IEC 60320 C19
Input Wiring 1-phase
Max Input Current 20 ampere
Output Connector Type 2 x power IEC 60320 C19, 8 x power IEC 60320 C13
Power Output Connectors Details 2 x power IEC 60320 C19, 8 x power IEC 60320 C13
Power Provided 3.84 kilograms per millimetere
Provided Voltage AC 200/208/220/230/240 volt
Required Voltage AC 208/230/240 volt
Software
Specification Details
Software Type TrippLite PowerAlert
Technical Information
Specification Details
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104 °F
Min Operating Temperature 32 °F
Operating Humidity 5 – 95% (non-condensing)
Product Information
Specification Details
Cord Length 12 ft
Packaged Quantity 1
Product Type Power distribution unit
Rack Mounting Kit Included
Subcategory Power distribution devices
Included Items
Specification Details
Cables 2 x power cable (C19-C20) – detachable – 12 ft, Console cable
Included Accessories 10 plug-lock insert sleeves
Dimensions & Weight
Specification Details
Height 1.7 inch
Height (Rack Units) 1
Rack Size 19″
Rack Size (metric) 48.3 cm
Weight 10.3 lbs
Width 17.3 inch
Depth 14.8 inch
Physical Characteristics
Specification Details
Color Category Black
