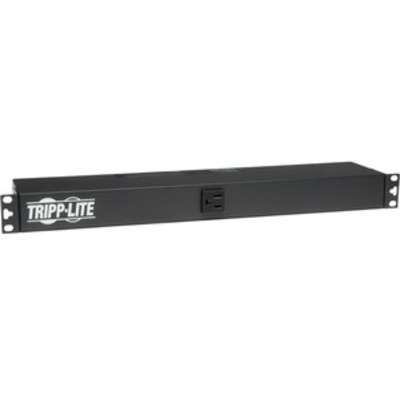

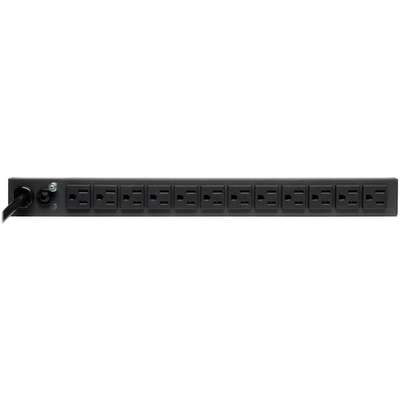

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for high-density IT environments, the PDU121506 features a single breakered load bank with 13 NEMA 5-15R outlets – 12 in the rear and one in front. A six-foot cord with NEMA 5-15P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads.
Power distribution unit
Eaton Tripp Lite Series PDU Basic 13 NEMA 5-15R Outlets 5-15P Input 1.8kW 6′ Cord 1URM
- Ideal no-frills PDU for telecom
- 13 NEMA 5-15R outlets distribute AC power to connected equipment
- Switchless design helps prevent accidental shutdowns that can lead to costly downtime

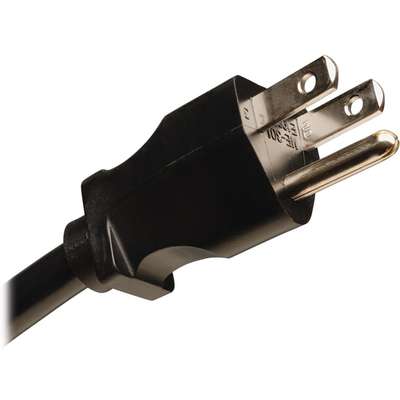

- 6 ft. cord with NEMA 5-15P single-phase input connects to AC power source
- Flexible installation options include 1U and 0U rack
AED999.00
General Information
Attribute | Details |
---|---|
Product Name | Tripp Lite Series PDU Basic 13 NEMA 5-15R Outlets 5-15P Input 1.8kW 6′ Cord 1URM |
Product Model | PDU121506 |
Product Type | PDU |
Technical Information
Attribute | Details |
---|---|
PDU Type | Basic |
Phase | Single Phase |
Plug / Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
Receptacle Detail | 13 x NEMA 5-15R |
Protection Type | Overload Protection |
Power Description
Attribute | Details |
---|---|
Input Voltage | 120 V AC |
Output Voltage | 100 V AC, 120 V AC, 127 V AC |
Power Rating (Watt) | 1900 W |
Input Current | 15 A |
Physical Characteristics
Attribute | Details |
---|---|
Mounting Orientation | Horizontal |
Mount Type | Rack-mountable |
Rack Height | 1U |
Cord Length | 6 ft |
Height | 1.8″ |
Width | 17.5″ |
Depth | 4.5″ |
Miscellaneous
Attribute | Details |
---|---|
Country of Origin | Vietnam |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Other Information | Circuit Breaker: Yes |
