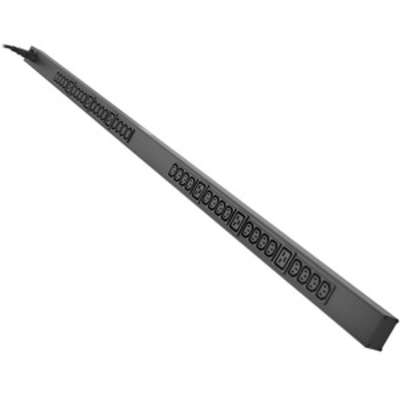

Eaton Tripp Lite Series PDU Basic 32 C13 6 C19 3.3/3.8kW 208/240V L6-20P 10′ Cord 0URM


  • Ideal no-frills PDU for telecom

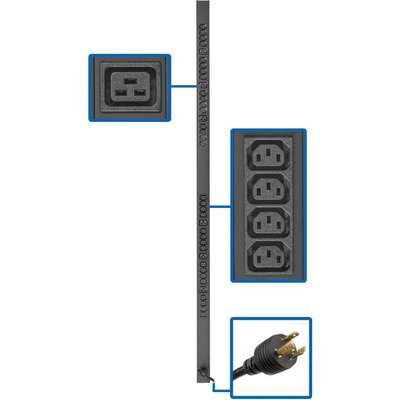

  • 32 C13 and 6 C19 outlets distribute AC power to connected equipment
  • Switchless design helps prevent accidental shutdowns that can lead to costly downtime

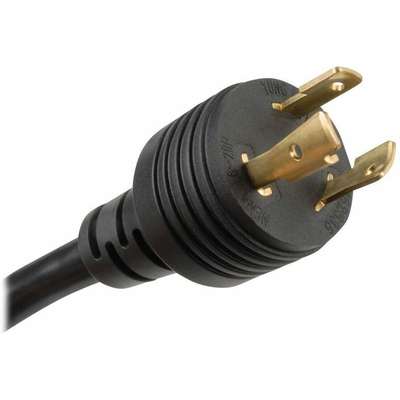

  • 10 ft. cord with NEMA L6-20P single-phase input connects to compatible power source

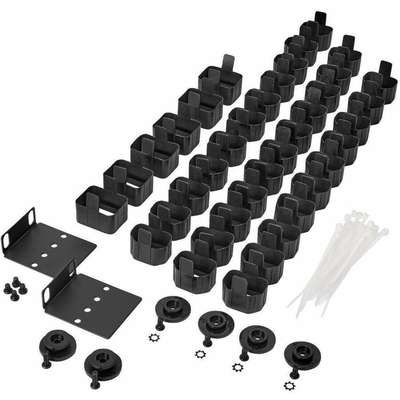

  • 63.75 in. 0U PDU with included mounting hardware installs in rack or under counter

AED2,799.00

This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDUV20HVL6-72 features 32 C13 and six C19 outlets for connecting equipment. A 10-foot cord with NEMA L6-20P input plug connects to your facility’s AC power source, generator or protected UPS system to distribute power to connected loads. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.

SKU: PDUV20HVL6-72 Category: Tag:

Product Information Table

Category Details
Product Name Tripp Lite Series PDU Basic 32 C13 6 C19 3.3/3.8kW 208/240V L6-20P 10′ Cord 0URM
Product Model PDUV20HVL6-72
Product Type PDU

Technical Information

Attribute Details
PDU Type Basic
Phase Single Phase
Plug / Connector Type NEMA L6-20P
Receptacle Type IEC 60320 C13, IEC 60320 C19
Receptacle Detail 32 x IEC 60320 C13, 6 x IEC 60320 C19
Protection Type Accidental Power Shutdown

Power Description

Attribute Details
Input Voltage 230 V AC
Output Voltage 200 V AC, 208 V AC, 240 V AC
Power Rating (Watt) 3840 W
Input Current 20 A

Physical Characteristics

Attribute Details
Mounting Orientation Vertical / Toolless
Mount Type Wall-mountable, Rack-mountable
Placement Under-counter
Rack Height 0U
Cord Length 10 ft
Height 63.8″
Width 2.3″
Depth 3.8″
