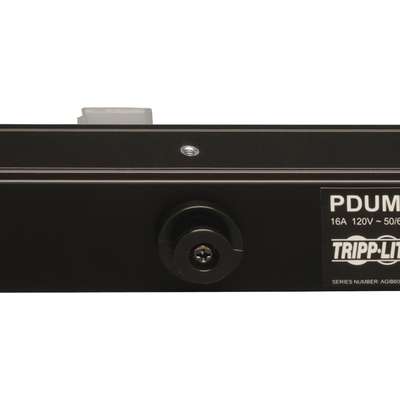

Eaton Tripp Lite Series PDU Metered 120V 20A 5-15/20R 14 Outlet L5-20P 36″ Height 0URM

Add to Wishlist

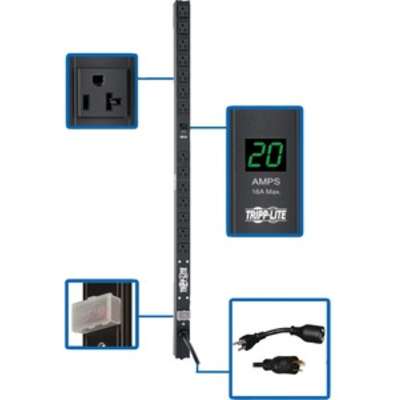

  • Metered single phase 120V 20A 0U 36-in. / 91.4cm vertical rackmount PDU
  • Two-digit current meter reports output current in amps
  • Attached 15ft / 4.6m cord with NEMA L5-20P plug and 5-20P adapter
  • 14 NEMA 5-15/20R outlets

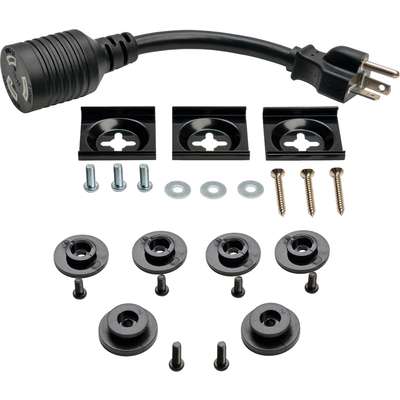

  • Toolless button mount and bolt-down bracket installation hardware included

AED2,199.00

Add to Wishlist

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

SKU: PDUMV20-36 Category: Tag:

General Information

Attribute Details
Product Name Tripp Lite Series PDU Metered 120V 20A 5-15/20R 14 Outlet L5-20P 36″ Height 0URM
Product Model PDUMV20-36
Product Type PDU

Technical Information

Attribute Details
Plug / Connector Type NEMA L5-20P
Receptacle Type NEMA 5-15/20R
Receptacle Detail 14 x NEMA 5-15/20R

Power Description

Attribute Details
Input Voltage 120 V AC
Output Voltage 120 V AC
Power Rating 2000 W
Input Current 20 A

Physical Characteristics

Attribute Details
Mounting Orientation Vertical
Mount Type Rack-mountable
Rack Height 0U
Height 36″
Width 1.8″
Depth 1.3″
