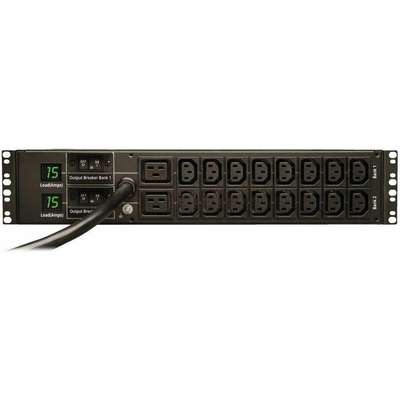

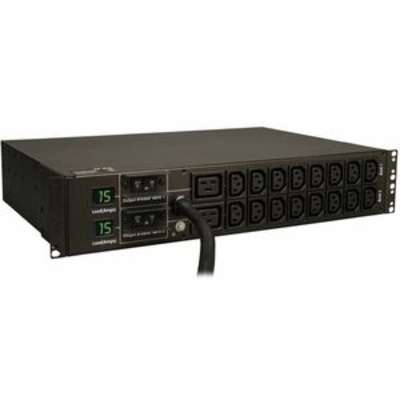

Eaton Tripp Lite Series PDU Metered 16 C13 2 C19 Outlets 208/240V 5.8kW L6-30P 2U TAA


  • 16 C13 and 2 C19 208/240V outlets distribute AC power to connected equipment
  • Digital ammeter for on-site load monitoring helps prevent power overloads
  • 1.8 m cord with NEMA L6-30P single-phase input connects to AC power source

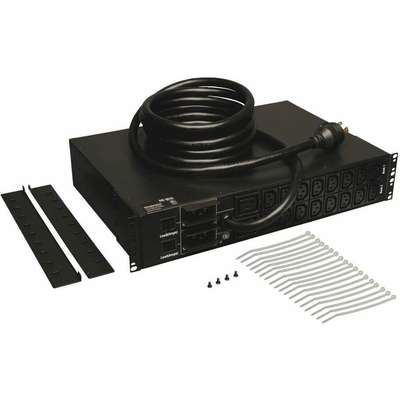

  • Metered PDU installs in 2U of rack space using the included mounting brackets
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

AED4,099.00

This metered PDU provides real-time monitoring of load levels via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH30HV6 features 16 C13 and two C19 208/240V outlets in two separately breakered load banks, which distribute AC power to rack equipment. The banks can be individually monitored to ensure proper load balance and make any necessary upgrades before the PDU becomes overloaded. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.

SKU: PDUMH30HV6 Category: Tag:
Category Attribute Details
General Information Product Name Tripp Lite Series PDU Metered 16 C13 2 C19 Outlets 208/240V 5.8kW L6-30P 2U TAA
Product Model PDUMH30HV6
Product Type PDU
Technical Information PDU Type Metered
Phase Single Phase
Plug / Connector Type NEMA L6-30P
Receptacle Type IEC 60320 C13, IEC 60320 C19
Receptacle Detail 16 x IEC 60320 C13
2 x IEC 60320 C19
Protection Type Overload Protection
Power Description Input Voltage 230 V AC
Output Voltage 200 V AC, 208 V AC, 240 V AC
Power Rating (Watt) 5800 W
Input Current 30 A
Physical Characteristics Mounting Orientation Horizontal
Mount Type Rack-mountable
Rack Height 2U
Height 3.5″
Width 17.5″
Depth 12.5″
