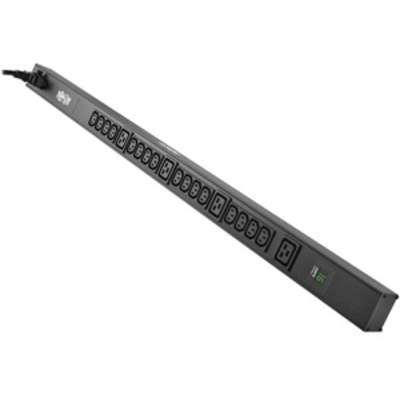

Eaton Tripp Lite Series PDU Metered 16 C13 4 C19 3.2/3.8kW 208/240V C20/L6-20P 10′ Crd

Add to Wishlist
  • 16 C13 and 4 C19 200-240V outlets distribute AC power to connected equipment
  • Digital ammeter for on-site real-time load monitoring helps prevent power overloads
  • Switchless design helps prevent accidental shutdowns that can lead to costly downtime
  • 10-ft. (3.05 m) detachable cord with L6-20P single-phase input connects to AC power source
  • 40 in. 0U PDU with included mounting brackets installs in rack or under counter

AED2,499.00

Add to Wishlist

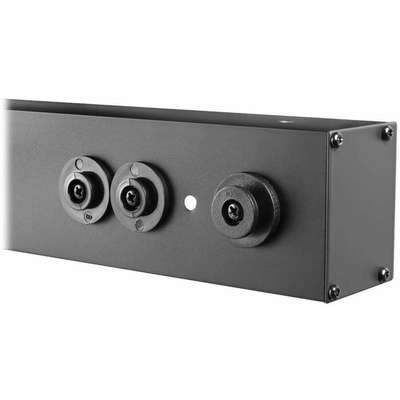

Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.

SKU: PDUMV20HV-36 Category: Tag:

General Information

Attribute Details
Product Name Tripp Lite Series PDU Metered 16 C13 4 C19 3.2/3.8kW 208/240V C20/L6-20P 10′ Cord
Product Model PDUMV20HV-36
Product Type PDU

Technical Information

Attribute Details
PDU Type Metered
Phase Single Phase

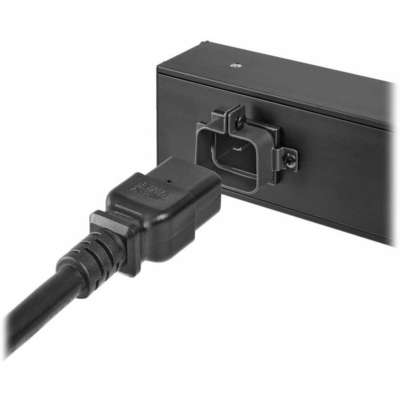

Plug / Connector Type NEMA L6-20P, IEC 60320 C20

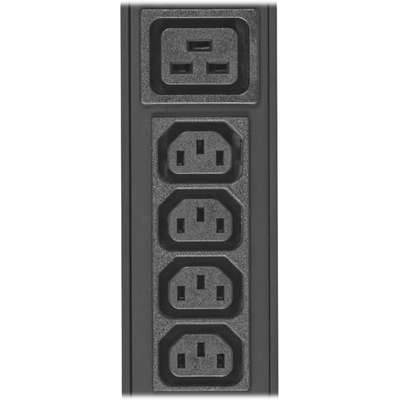

Receptacle Type IEC 60320 C13, IEC 60320 C19
Receptacle Detail 16 x IEC 60320 C13
4 x IEC 60320 C19
Protection Type Circuit Protection, Overload Protection, Accidental Power Shutdown

Power Description

Attribute Details
Input Voltage 230 V AC
Output Voltage 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC
Power Rating (Watt) 3840 W
Input Current 20 A

Physical Characteristics

Attribute Details
Mounting Orientation Vertical / Toolless
Mount Type Rack-mountable, Wall-mountable
Placement Under-counter
Rack Height 0U
Cord Length 10 ft
Height 39.8″
Width 2.3″
Depth 3.8″
