Eaton Tripp Lite Series PDU Metered 200V-240V 16A 32 C13; 6 C19 IEC309 Vertical 0URM

Add to Wishlist

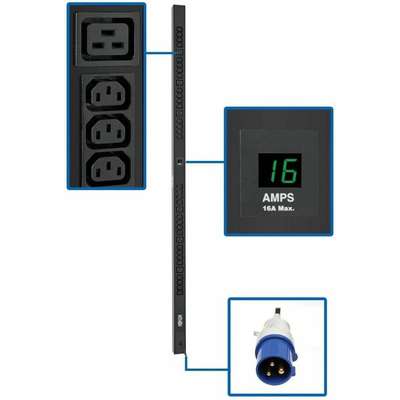

  • 3.84kW 16A single phase 208/230V Local Metered Power Distribution Unit / PDU
  • Two-digit lighted meter reports combined total output current in amps
  • 10ft / 3m input cable with Blue IEC309 16A input plug

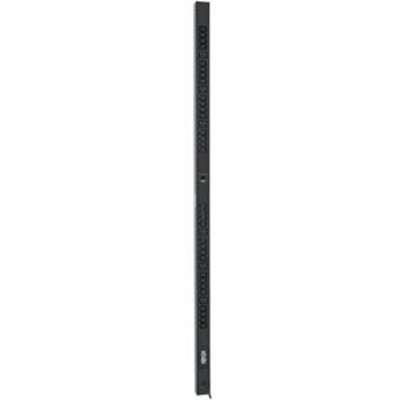

  • 0U 63.75in / 162cm vertical rackmount format installs vertically, using no rack spaces
  • 38 total outlets (6 C19, 32 C13)
  • Plug-lock cord retention sleeves keep C20 and C14 equipment plugs from accidental disconnection

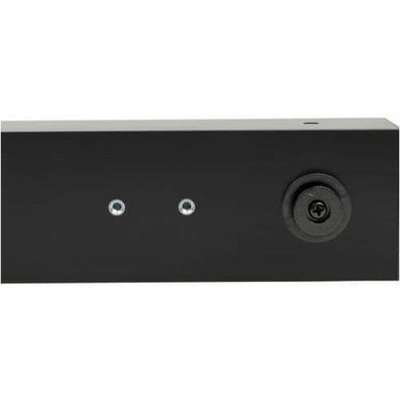

  • Toolless installation supported in button-mount compatible equipment racks

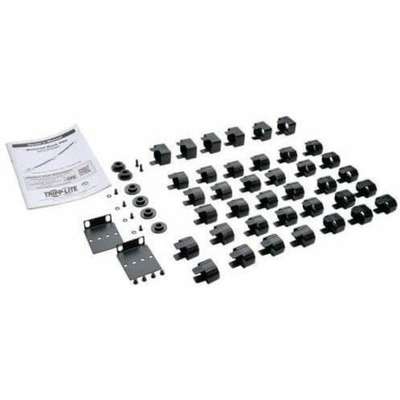

  • Bolt-down installation brackets support installation in other racks and additional surfaces

AED3,799.00

Add to Wishlist

This single-phase Local Metered PDU offers real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rack-mount multi-outlet power distribution from any protected UPS, generator or mains input power source. High-quality design includes rugged all-metal housing and secure rack-mount installation with included mounting accessories.

SKU: PDUMV16HV Category: Tag:
Category Attribute Details
General Information Product Name Tripp Lite Series PDU Metered 200V–240V 16A 32 C13; 6 C19 IEC309 Vertical 0URM
Product Model PDUMV16HV
Product Type PDU
Phase Single Phase
Technical Information PDU Type Metered
Plug / Connector Type IEC 60309 16A Blue (2P+E)
Receptacle Type IEC 60320 C13, IEC 60320 C19
Receptacle Detail 32 x IEC 60320 C13
6 x IEC 60320 C19
Locking Receptacles P-Lock
Features LCD Display
Power Description Power Rating (Watt) 3700 W
Input Voltage 230 V AC
Output Voltage 208 V AC, 230 V AC
Input Current 16 A
Power Source UPS
Physical Characteristics Form Factor Vertical
Mounting Orientation Vertical
Mount Type Rack-mountable, Button Mount
Rack Height 0U
Cord Length 10.01 ft
Height 63.8″
Width 2.2″
Depth 3.7″
Environmental Min Operating Temperature 32°F (0°C)
Max Operating Temperature 104°F (40°C)
Min Storage Temperature -22°F (-30°C)
Max Storage Temperature 122°F (50°C)
Miscellaneous Country of Origin China
