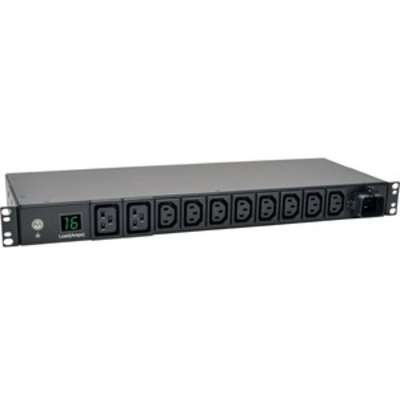

EATON Tripp Lite Series PDU Metered 200V-240V 16A IEC-309 8 C13; 2 C19 Horizontal 1URM

Add to Wishlist
  • Metered single phase 16A 200/220/230/240V PDU

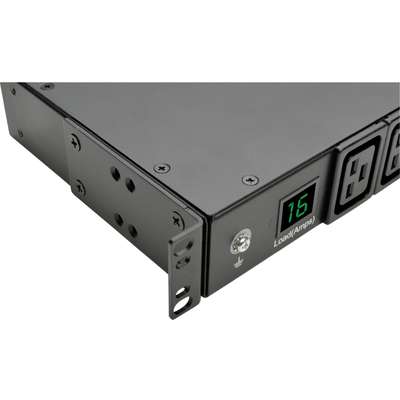

  • 1U horizontal rackmount; digital current meter
  • C20 input with IEC-309 Blue 16A input; 2.5m line cord
  • 10 total outlets (8 C13, 2 C19)

AED2,099.00

Add to Wishlist

Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

SKU: PDUMH16HV Category: Tag:
Category Attribute Value
General Information Product Name Tripp Lite Series PDU Metered 200V-240V 16A IEC-309 8 C13; 2 C19 Horizontal 1URM
Product Line Metered
Product Model PDUMH16HV
Product Type PDU
Technical Information Plug / Connector Type IEC 60309 16A Blue (2P+E)
Receptacle Type IEC 60320 C19, IEC 60320 C13
Receptacle Detail 2 x IEC 60320 C19, 8 x IEC 60320 C13
Power Description Input Voltage 230 V AC
Input Voltage Range 200 V AC – 240 V AC
Output Voltage 200 V AC, 220 V AC, 230 V AC, 240 V AC
Power Rating (Watt) 3840 W
Input Current 16 A
Physical Characteristics Mounting Orientation Horizontal
Mount Type Rack-mountable
Rack Height 1U/2U
Height 1.8″
Width 17.5″
Depth 6.5″
Miscellaneous Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Other Information Product Family Metered
