Power distribution unit
Eaton Tripp Lite Series PDU Metered 8 C13 2 C19 3.2/3.8kW 208/240V L6-20P 6′ Cord 1URM

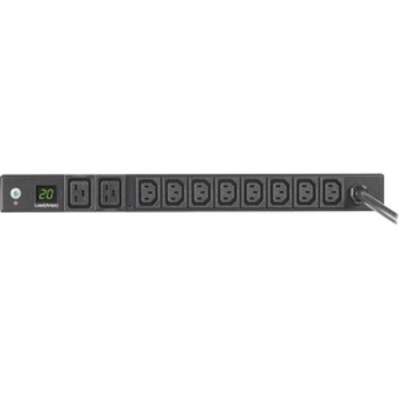

- 8 C13 and 2 C19 208/240V outlets distribute AC power to connected equipment

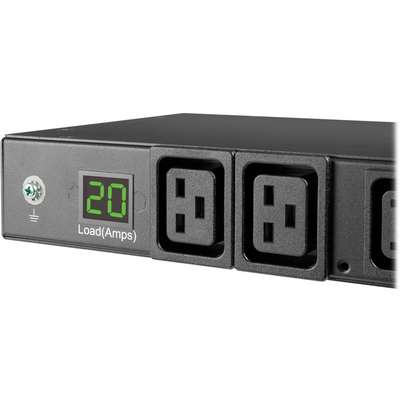

- Digital ammeter for on-site real-time load monitoring helps prevent power overloads
- 6 ft. cord with NEMA L6-20P single-phase input connects to AC power source
- Flexible installation options include 1U and 0U rack
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
AED2,099.00

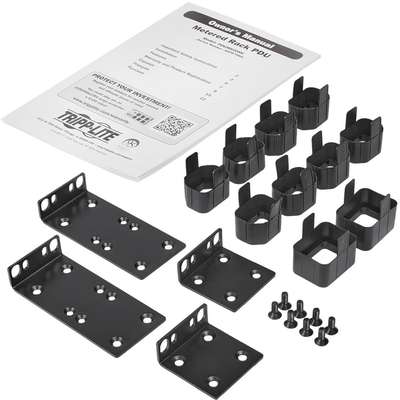

This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMH20HVL66 features eight C13 and two C19 208/230V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged.
| Category | Attribute | Details |
|---|
| General Information | Product Name | Tripp Lite Series PDU Metered 8 C13 2 C19 3.2/3.8kW 208/240V L6-20P 6′ Cord 1URM |
| Product Model | PDUMH20HVL66 |
| Product Type | PDU |
| Technical Information | PDU Type | Metered |
| Phase | Single Phase |
| Plug / Connector Type | NEMA L6-20P |
| Receptacle Type | IEC 60320 C13, IEC 60320 C19 |
| Receptacle Detail | 8 x IEC 60320 C13 2 x IEC 60320 C19 |
| Protection Type | Circuit Protection, Overload Protection, Accidental Power Shutdown |
| Power Description | Input Voltage | 230 V AC |
| Output Voltage | 208 V AC, 240 V AC |
| Power Rating (Watt) | 3800 W |
| Input Current | 20 A |
| Physical Characteristics | Mounting Orientation | Horizontal/Vertical |
| Mount Type | Wall-mountable, Rack-mountable |
| Placement | Under-counter |
| Rack Height | 1U |
| Cord Length | 6 ft |
| Height | 1.8″ |
| Width | 17.5″ |
| Depth | 6.5″ |
