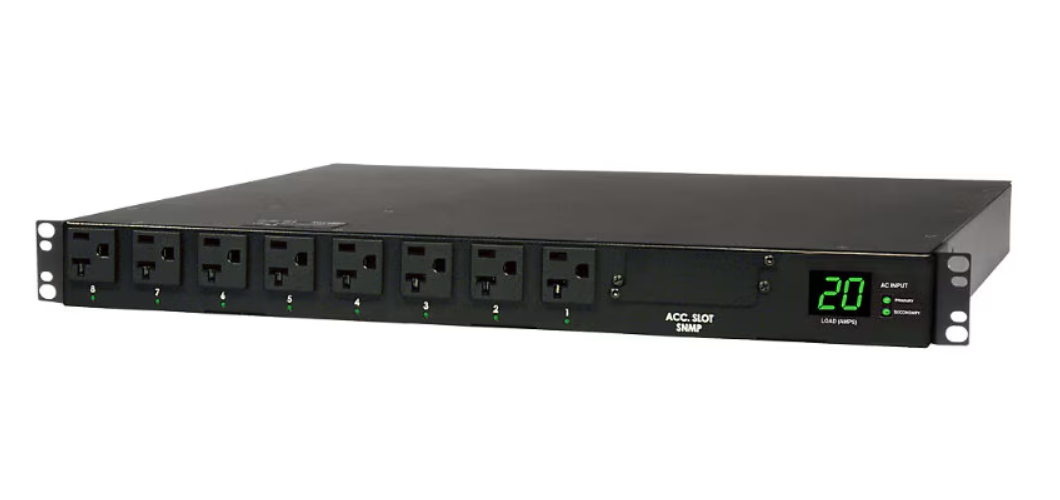

Eaton Tripp Lite Series PDU Metered ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal 1U – horizontal rackmount – power

Add to Wishlist

Quick tech specs

  • Single phase 20A 120V Auto Transfer Switching/ ATS PDU
  • Digital display continuously reports total output power consumption in amps
  • 1U horizontal rackmount
  • Tripp Lite is now a part of Eaton
  • Provides a redundant A/B power option for non-redundant networking equipment

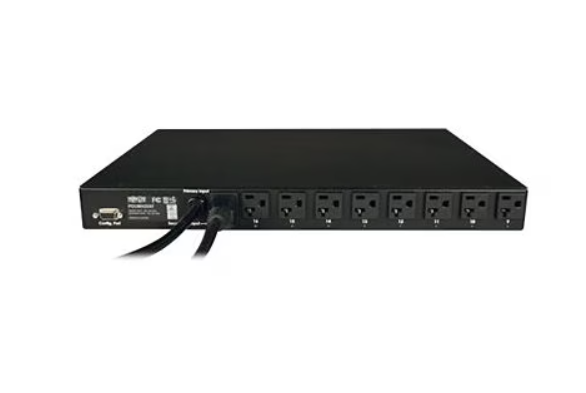

  • 16 NEMA 5-15/20R outlets (8 front/ 8 rear); 2 NEMA L5-20P/5-20P inputs 12ft cord
  • PDU/ Power Distribution Unit/ Horizontal PDU/ Metered PDU/ rack pdu/ pdus/ data center pdu/ network pdu/ networking pdu

AED4,399.00

Add to Wishlist

Know your gear

Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED’s display primary or secondary power availability.
SKU: PDUMH20AT Category: Tag:
Overview
Field Value
Brand Tripp Lite
Product Line Eaton Tripp Lite Series
Model PDU Metered ATS 120V 20A 5-15/20R 16 Outlet L5-20P Horizontal 1U
Edition Horizontal rackmount
Manufacturer Tripp Lite
Expansion Slots
Field Value
Expansion Slots 1 (total) / 1 (free) x expansion slot
Connectivity
Field Value
Input Connectors 2
Interface Provided 1 x management – 9 pin D-Sub (DB-9)
Power
Field Value
Emergency Power Off Amp meter, Automatic Transfer Switch (ATS), Current meter, LED indicators
Frequency 50/60 hertz
Frequency Provided 50/60 hertz
Input Connector Type Power NEMA L5-20
Max Input Current 20 ampere
Output Connector Quantity 16
Output Connector Type Power NEMA 5-15/20
Power Capacity 2400 volt ampere per kilogram
Power Output Connectors Details 16 x power NEMA 5-15/20
Power Provided 1.9 kilograms per millimetere
Provided Voltage AC 120 volt
Required Voltage AC 120 volt
Technical Information
Field Value
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104 degree Fahrenheit
Min Operating Temperature 32 degree Fahrenheit
Operating Humidity 0 – 95%
Product Information
Field Value
Features Wall Mountable
Packaged Quantity 1
Product Type Power distribution unit
Subcategory Power distribution devices
Included Items
Field Value
Cables 2 x power connector adapter 5.9 in, Power cable – external – 12 ft, Power cable – integrated – 12 ft
Dimensions & Weight
Field Value
Height 1.7 inch
Height (Rack Units) 1
Weight 12.13 lbs
Width 17.5 inch
Depth 14.5 inch
Physical Characteristics
Field Value
Color Black
Color Category Black
